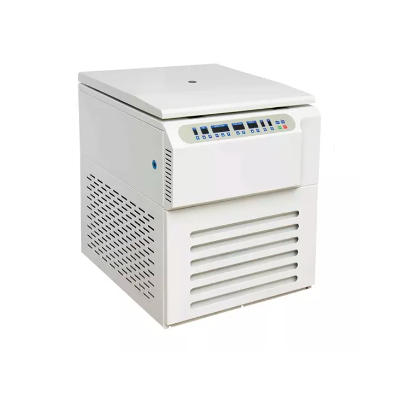

Large Capacity Refrigerated Centrifuge SMI-154-6MB(I)-DL6MB (I)

CLICK TO SCAN

Description

JINDAL Large Capacity Refrigerated Centrifuge is designed to meet the requirements of the laboratory.This Centrifuge finds its extensive use in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It is the ideal instrument for blood separation, protein precipitation and cell collection.

Features

  • Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, speeds up and down
  • The flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration
  • Imported compressors fluorine free, double cycle cooling, cold and hot alternating   easily, free environment pollution and precise in temperature control
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection
  • Micro computer control system, digital display the temperature, time and speed
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  •  The centrifuge body is made of high quality steel, safe and reliable
  • 3 tiers protection steel cover and get the ideal centrifugation result
Enquire Now

Technical Data:

Product
Large Capacity Refrigerated Centrifuge
Model No
SMI-154-6MB(I)-DL6MB (I)
Max Speed
6000r/min
Max RCF
6600*g
Weight
260Kg
Dimension
940*735*1260mm
Time Range
1~99H59min
Speed accuracy
±50r/min
Capacity
6*1000mL
Noise
≦65dBA
Packaged Weight
300Kg
Packaged dimension
1150*1050*1405mm
Temperature Range
-20~40℃
Temperature accuracy
±1℃
Power
AC110/220V, 50-60Hz,20A
Rotor Identification
Automatic Identification
Package
Wooden Box

Matched Rotors: (Rotors to be ordered separately from the machine)

Rotor
Max Speed (r/min
Max Capacity (mL)
Max RCF (*g)
Angle Rotor
6000
6*500
6600
Angle Rotor
6000
6*300
5660
Angle Rotor
6000
4*300
5390
Swing Rotor
4200
6*1000
5100
Swing Rotor
4200
6*1100
5100
Plate Bucket
4000
4*4*96 Holes
2840
