Large Capacity Refrigerated Centrifuge SMI-154-6-DDL6

Home ≫Centrifuges>Large Capacity Refrigerated Centrifuge SMI-154-6-DDL6

Large Capacity Refrigerated Centrifuge SMI-154-6-DDL6

CLICK TO SCAN

Description

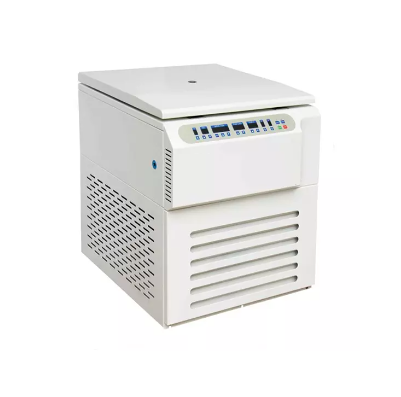

JINDAL Large Capacity Refrigerated Centrifuge is designed to meet the requirements of the laboratory. This Centrifuge finds its extensive use in the area of blood stations, pharmaceutical factories, biochemistry, biological products and so on. It is the ideal instrument for blood separation, protein precipitation and cell collection.

Features

  • Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • Brushless DC motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down
  • Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection
  • Microprocessor control, speed, time, temperature and RCF in operation, speed rising and reducing quickly, operate simply
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • There are many rotors for your choice, adapters are available by experiment requirements
  • 3 tiers protection steel cover, safe and reliable
Enquire Now

Technical Data:

Product
Large Capacity Refrigerated Centrifuge
Model No
SMI-154-6-DDL6
Max Speed
6000r/min
Max RCF
6600*g
Weight
220Kg
Dimension
800*675*830mm
Time Range
0~99H59min
Speed accuracy
±50r/min
Capacity
4*1000mL
Noise
≦55dBA
Gross Weight
260Kg
Packaged dimension
1500*790*960mm
Temperature Range
-20~40℃
Temperature accuracy
±1℃
Power
AC110/220V, 50-60Hz,20A
Package
Wooden Box
Motor
Brushless

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No.
Rotor
Max Speed (r/min
Max Capacity (mL)
Max RCF (*g)
33097
Swing Rotor
4000
4*1000
4060
33221
Fixed Rotor
6000
4*300
5390
33222
Fixed Rotor
6000
6*300
5660
33223
Fixed Rotor
6000
6*500
6600
30694
Plate Bucket
4000
4*4*96 Holes
4430
