S.M. Scientific Instruments (P) LTD

Large Capacity Refrigerated Centrifuge SMI-154-5M-DDL5M

Home ≫Centrifuges> Large Capacity Refrigerated Centrifuge SMI-154-5M-DDL5M

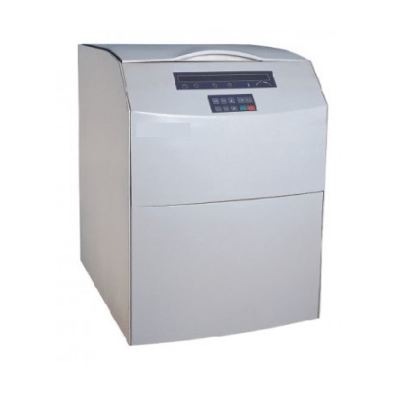

Large Capacity Refrigerated Centrifuge SMI-154-5M-DDL5M

CLICK TO SCAN

Description

JINDAL Large capacity refrigerated centrifuge is designed to meet the requirements of the laboratory. This Centrifuge finds its extensive use in the area of blood stations, pharmaceutical factories, biochemistry, biological products and so on. It is the ideal instrument for blood separation, protein precipitation and cell collection.

Features

  • Brushless frequency conversion motor, no need to maintain, no powder pollution, quick in speed raising and reducing
  • Imported compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • Flexible driven system which drive the rotor directly, smooth in operation, low noise and small vibration
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • Microprocessor control, LCD displays the speed, time, RCF in operation, speed raising and reducing quick, operate simply
  • There are many rotors for your choice; adapters are available by experiment requirements
  • 3 tiers protection steel cover, safe and reliable
Enquire Now

Technical Data:

Product
Large Capacity Refrigerated Centrifuge
Model No
SMI-154-5M-DDL5M
Max Speed
5000r/min
Max RCF
4730*g
Weight
170Kg
Dimension
685mm W x 540mm D x 820mm H
Time Range
0~99H59min
Speed accuracy
±50r/min
Capacity
4*500mL
Noise
≦58dBA
Packaged Weight
190Kg
Packaged dimension
845mm W x 585mm D x 515mm H
Power
AC110/220V, 50-60Hz,15A
Package
Wooden Box
Rotor Identification
Automatic Identification

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
30695
Swing Rotor
4000
2*500mL
3380
30696
Swing Rotor Round Cup
4000
4*500mL
3380
Swing Rotor Round Cup
4000
4*500mL
3940
30592
Swing Rotor
4000
4*250mL
2920
30589
Swing
4000
88*5 Vacuum Tube, 124*5 Vacuum Tube
2840
30590
Swing
4000
88*7 Vacuum Tube, 124*7 Vacuum Tube
3140
30691
Plate Bucket
4000
2*4*96 Holes
2490
30694
Plate Bucket
4000
4*4*96 Holes
2840
30676
Plate Bucket
4000
2*3*48 Holes
2300
30679
Swing Rotor Cubic Cup
4000
4*500mL
3310
30627
Fixed Rotor
5000
30*15mL
3830
30638
Fixed Rotor
5000
6*15mL
2540
30607
Fixed Rotor
5000
12*15mL
3080
30639
Fixed Rotor
5000
24*15mL
3500
30640
Fixed Rotor
5000
4*50mL
2520
30611
Fixed Rotor
5000
6*50mL
2850
30641
Fixed Rotor
5000
12*50mL
14890
30642
Fixed Rotor
4000
24*50mL
2970
30613
Fixed Rotor
5000
4*100mL
2630
30614
Fixed Rotor
5000
6*100mL
3130
30643
Fixed Rotor
4000
12*100mL
2970
31377
Swing Rotor
5000
4*50mL, 4*100mL
4730
31378
Swing Rotor
4000
8*100mL
3020
8*50mL
3200
16*15mL
3200
24*15mL
3200
32*15mL
3200
48*7mL
2880
24*10mL
2790
16*10mL
2790

Product Brochure

Product Brochure Link here
