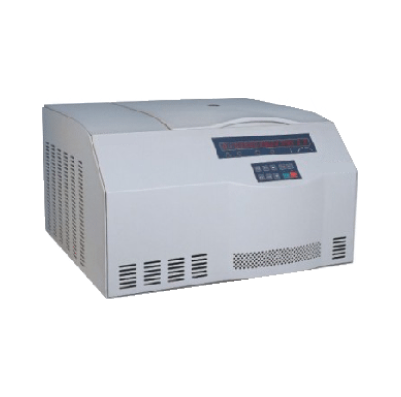

Large Capacity Refrigerated Centrifuge SMI-154-5A-TDL5A

CLICK TO SCAN

Description

JINDAL Large Capacity Refrigerated Centrifuge is designed to meet the requirements of the laboratory.

Features

  • Brushless DC motor, free maintenance, no carbon dust pollution, quick  speed up and down
  • Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameters can be edited
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made in high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction
  • There are several kinds of rotors for your choice, adapters can be designed by experimental requirements
  • 3 tiers protection steel cover and get the ideal centrifugation result



Enquire Now

Technical Data:

Product
Large Capacity Refrigerated Centrifuge
Model No
SMI-154-5A-TDL5A
Max Speed
5000r/min
Max RCF
4730*g
Timer
0～99min
Speed Accuracy
±50r/min
Capacity
4*300mL
Noise
≦65dBA
Weight
118Kg
Dimension
640*665*420mm
Packaged Weight
130Kg
Packaged Dimension
820*735*535mm
Temperature Range
-20~40℃
Temperature Accuracy
±1℃
Power
AC110/220V, 50-60Hz,15A
Rotor Identification
Automatic Identification

Matched Rotors: (Rotors to be ordered separately from the machine)

No
Rotors No
Max Speed r/min
Max Capacity(ml)
Max RCF(g）
30592
Swing Rotor
4000
4*250
2920
30589
Swing Rotor
4000
88*5mL Vacuum Tube, 124*5mL Vacuum Tube
2840
30590
Swing Rotor
4000
88*7mL Vacuum Tube, 124*7mL Vacuum Tube
3140
30691
Plate Bucket
4000
2*4*96 Holes
2490
30676
Plate Bucket
4000
2*3*48 Holes
2300

Product Brochure

Product Brochure Link here
