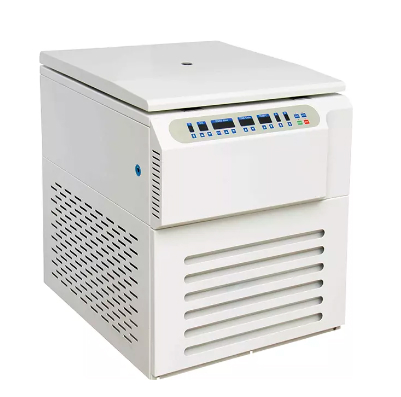

High Speed Refrigerated Centrifuge SMI-154-21M-GL21M

CLICK TO SCAN

Description

JINDAL High speed refrigerated centrifuge is designed to meet the requirements of the laboratory.   This Centrifuge is widely used in the area of animal and plant molecular biology, cell biology, clinical applications, bio-engineering, mass preparation and blood, protein precipitation, Separating the biology, viruses, sub-cell,  and the chemicals in the cell.

Features

  • Brushless frequency motor in great torque, free maintenance, no carbon dust pollution, quick in speed up and down
  • Flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration
  • Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • There are more than 20 kinds of rotors for your choice, especial the continuous rotors which help you purify a large number of test solution continuously
  • Microprocessor control speed, temperature and time, digital display, 10 kinds of accelerating and decelerating speed for your choice
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection
  • The centrifuge body is made of high quality steel
  • 3 tiers protection steel cover, safe and reliable
Enquire Now

Technical Data:

Product
High Speed Refrigerated Centrifuge
Model No
SMI-154-21M-GL21M
Max Speed
21000r/min
Max RCF
46140*g
Weight
235Kg
Dimension
865*728*1240mm
Time Range
1~99H59min
Speed accuracy
±50r/min
Capacity
6*500mL
Noise
≦65dBA
Packaged Weight
285Kg
Packaged dimension
1000*850*1510mm
Temperature Range
-20~40℃
Temperature accuracy
±1℃
Power
AC110/220V, 50-60Hz,35A
Rotor identification
Automatic Identification
Package
Wooden Box

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
30108
Fixed Rotor
21000
12*10mL
44440
30117
Fixed Rotor
20000
16*10mL
46140
30111
Fixed Rotor
20000
6*50mL
44700
30118
Fixed Rotor
20000
8*30/20mL
42040
30119
Fixed Rotor
15000
8*50mL
27540
30112
Fixed Rotor
15000
6*70mL
25480
30120
Fixed Rotor
12000
8*100mL
19610
30121
Fixed Rotor
11000
4*300mL
18120
30122
Fixed Rotor
10000
6*300mL
14860
30123
Fixed Rotor
9000
6*500mL
14860
30128
Continuous Centrifugal Rotor
17000
1000mL
31390
30129
Continuous Centrifugal Rotor
14000
1800mL
21710
30130
Continuous Centrifugal Rotor
8000
3000mL
9450
30131
Continuous Centrifugal Rotor
8000
1800mL
8600
30132
Interval Rotor
17000
1000mL
31390
30133
Interval Rotor
12000
1200mL
19350
30134
Interval Rotor
10000
3000mL
14890
30135
Vertical Rotor
20000
16*5mL
38340
Interval Rotor
18000
8*30mL
32650
30180
Swing Rotor
15000
4*5mL
21670
30181
Swing Rotor
13000
4*30mL
23580
30182
Swing Rotor
10000
4*50mL
16240
30694
Bucket Rotor
4000
4*4*96 Holes
2840
30696
Swing rotor
4000
4*500mL
3380
