High Speed Refrigerated Centrifuge SMI-154-20-TGL20

Home ≫Centrifuges> High Speed Refrigerated Centrifuge SMI-154-20-TGL20

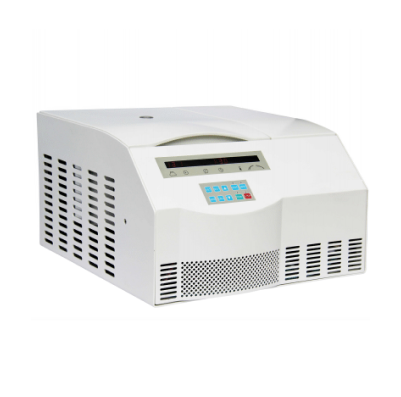

High Speed Refrigerated Centrifuge SMI-154-20-TGL20

CLICK TO SCAN

Description

JINDAL High speed refrigerated centrifuge is designed to meet the requirements of the laboratory.

Features

Brushless frequency motor which in great torque, free maintenance, quick in speed up and down

The flexible axle driven system which drive the rotor directly, smooth in operation, quiet and small vibration

There are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice

Micro computer control system, LED display, which indicates the temperature, time and speed

Automatically electric lid lock, pre-cooling design, super speed and imbalance protection

The centrifuge body is made of high-quality steel, safe and reliable

Technical Data:

Product	High Speed Refrigerated Centrifuge	Model No	SMI-154-20-TGL20
Max Speed	21000 rpm	Max RCF	26660xg
Max volume	6x100mL	Noise	≤58dBA
Timer	1～99h59min	Net Weight	82Kg
Dimension(HxDxW)mm	380×608×570mm	Power Supply	AC 220V 50Hz 10A
Temperature Range	-20℃~40℃	Package	Wooden Box

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No	Rotor Type	Max Speed (r/min)	Max Capacity (mL)	Max RCF (*g)
NO30816	Angle Rotor	18000	30×0.5mL	26660
NO30803	Angle Rotor	17000	24×1.5/2mL	26460
NO30844	Angle Rotor	13000	48×1.5/2mL	17930
NO30805	Angle Rotor	16000	16×5mL	22020
NO30407	Angle Rotor	10000	12×15mL Falcon Tube	11840
NO30627	Angle Rotor	5000	30×15mL	3830
NO30809	Angle Rotor	15000	8×20mL	22680
NO30811	Angle Rotor	12000	6×50mL	16050
NO30813	Angle Rotor	12000	6×100mL	14850

Product Brochure

Product Brochure Link here
