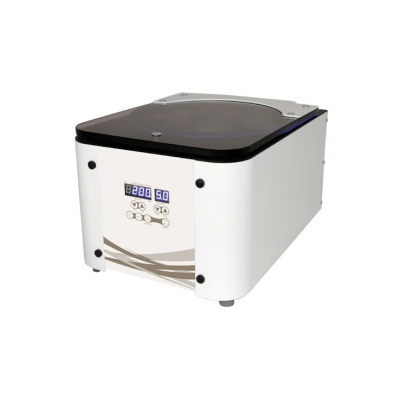

Home ≫Centrifuges>Economy Cytology Centrifuge SMI-ECC
CLICK TO SCAN
Using centrifugal force to separate and deposit a monolayer of cells onto slides while maintaining cellular integrity within a clearly defined area from any fluid matrix .
JINDAL centrifugation also constructively flattens cells for excellent nuclear presentation applications include Cytology, Histology, Haematology, Oncology, Immunochemistry, Virology, Serology and Microbiology offering samples from 0.1ml to 6ml and an extensive range of accessories we have your Cytology needs covered. Cytology rotor includes Rotor, sealed lid, Clips, 24 x holders with filter card & 100 slides
Using centrifugal force to separate and deposit a monolayer of cells onto slides while intaining cellular integrity within a clearly defined area from any fluid matrix.
JINDAL centrifugation also constructively flattens cells for excellent nuclear presentation applications include Cytology, Histology, Haematology, Oncology, Immunochemistry, Virology, Serology and Microbiology offering samples from 0.1ml to 6ml and an extensive range of accessories we have your Cytology needs covered. Cytology rotor includes Rotor, sealed lid, Clips, 24 x holders with filter card & 100 slides
|
Speed
|
4000 rpm max (10 rpm steps)
|
|---|---|
|
Max. RCF
|
10-1500 g
|
|
Timer
|
0-9 Hours & Hold (30 sec steps)
|
|
Dimension (HxWxD)
|
330 x 350 x 470mm
|
|
Weight
|
22.8 Kg (Without Rotor)
|
|
Power
|
160W
|
|
Memory
|
99 Programs
|
|
Acceleration Rates
|
10 Programs
|
|
Deceleration Rates
|
10 Programs
|
|

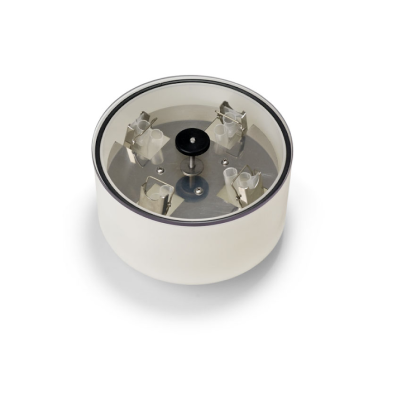

Rotor Model No.
|
R1
|
|---|---|
|
Rotor Type (mL)
|
4 x Double
|
|
Tube Size Max(mm)
|
STD Slide
|
|
Minimum Speed (rpm)
|
200
|
|
Maximum Speed (rpm)
|
2000
|
|
Maximum (RCF) G
|
550
|
|
Radius Max (mm)
|
123
|
|
Sample Tube Angle (0 )
|
Vertical
|
|
Acceleration Time (Sec.)
|
15-90
|
|
Deceleration Time (Sec.)
|
15-90
|
|
Autoclavable (Frequency)
|
121°C (20)
|
|
Rotor Model No.
|
R2
|
|---|---|
|
Rotor Type (mL)
|
8 x Double
|
|
Tube Size Max(mm)
|
STD Slide
|
|
Minimum Speed (rpm)
|
200
|
|
Maximum Speed (rpm)
|
2000
|
|
Maximum (RCF) G
|
550
|
|
Radius Max (mm)
|
123
|
|
Sample Tube Angle (0 )
|
Vertical
|
|
Acceleration Time (Sec.)
|
15-90
|
|
Deceleration Time (Sec.)
|
15-90
|
|
Autoclavable (Frequency)
|
121°C (20)
|
|
Rotor Model No.
|
R3
|
|---|---|
|
Rotor Type (mL)
|
12 x Double
|
|
Tube Size Max(mm)
|
STD Slide
|
|
Minimum Speed (rpm)
|
200
|
|
Maximum Speed (rpm)
|
2000
|
|
Maximum (RCF) G
|
550
|
|
Radius Max (mm)
|
123
|
|
Sample Tube Angle (0 )
|
Vertical
|
|
Acceleration Time (Sec.)
|
15-90
|
|
Deceleration Time (Sec.)
|
15-90
|
|
Autoclavable (Frequency)
|
121°C (20)
|
|
LED Display
|
Clarity & Easy to use
|
|---|---|
|
10 Accelerations rates & 10 Deceleration rates
|
Sample Assistance
|
|
99 Memory
|
Multi department & user
|
|
Timer 0-99 minutes & Hold in 1/30 second increments
|
Total flexibility
|
|
Plus Short Run
|
Fast pelleting
|
|
Run in speed (rpm) or rcf (g) in 1/10 rpm increments
|
Accuracy
|
|
Sound <55db (Rotor Dependent)
|
Quiet
|
|
Orientation Acceleration Rate
|
Prevent initial sample side deposits
|
|
Acrylic Bowl
|
Easy clean & rust free
|
|
Port to lid
|
Tachometer speed certification
|
|
Alloy & steel frame (zinc coated)
|
Strong light & quiet
|
|
World leading industrial grade inverter
|
Reliability & Strength
|
|
Best quality European brushless motor
|
Quiet, Cool & Reliable
|
|
High technology airflow (ambient mode)
|
Cooler running
|
|
Multi Point Lid Locking
|
Lid safety
|
|
Emergency Lid Release
|
Power failure release
|
|
Lid Spring Strut
|
Lid dropping safety
|
|
Lid lock Detection
|
To run lid must be shut
|
|
Imbalance Detection
|
Eradicates user loading errors
|
|
Overspeed Sensor
|
Safe detection of speed
|
|
Set Inverter Values
|
Electronic safety of speed
|
|
Barrier Ring
|
Extra metal protection of chamber
|
|
Motor Overheat Sensor
|
Safe motor protection
|
All JINDAL Centrifuges are complete with a starter pack. 100 microscope slides and a pack of 24 double sample holders including fixed blotters. Rotors are complete with lid, swing plate and stainless steel holders to match.
Product Brochure Link here
