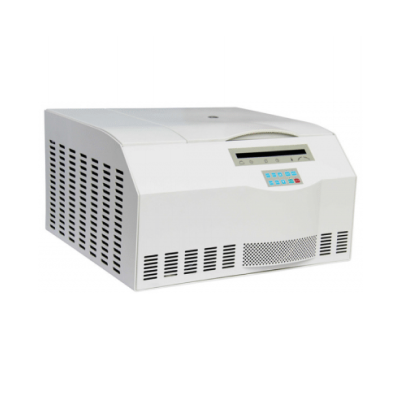

Desktop High Speed Refrigerated Centrifuge SMI-154-20M-TGL20M

CLICK TO SCAN

Description

JINDAL Desktop High Speed Refrigerated Centrifuge is designed to meet the requirements of the laboratory.   This Centrifuge finds its extensive use in the field of medicine, life science, agriculture science, institute and so on. It is used in the area of protein precipitation, RNA extraction and clinical sample processing.

Features

  • Frequency motor, no carbon dust pollution, free maintenance, quick in speed up and down
  • Microprocessor control, digital display, running parameters could be edited and changed to RCF value
  •  Imported compressors fluorine free, double cycle cooling capacity , cold and hot alternating easily, free environment pollution and precise in temperature control
  • 10 kinds of program are stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction
  • There are several kinds of rotors for your choice, adapters can be designed by experimental requirements
  • 3 tiers protection steel cover
Enquire Now

Technical Data:

Product
Desktop High Speed Refrigerated Centrifuge
Model No
SMI-154-20M-TGL20M
Max Speed
20000r/min
Max RCF
26660*g
Time Range
1~99H59min
Speed Accuracy
±50r/min
Capacity
6*100mL
Noise
≦58dBA
Weight
82Kg
Dimension (DxWxH)
610mm D x 570mm W x 380mm H
Packaged Weight
92Kg
Packaged Dimension
830*650*500mm
Temperature Range
-20~40℃
Temperature Accuracy
±1℃
Power
AC110/220V, 50-60Hz,10A
Rotor Identification
Automatic Identification

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No.
Rotor
Max Speed(rpm)
Max Capacity
Max RCF(xg)
30801
Angle Rotor
20000
12*1.5/2mL
25430
30802
Angle Rotor
15000
40*0.5mL
22920
30803
Angle Rotor
18000
24*1.5/2mL
29670
30804
Angle Rotor
13500
30*1.5/2mL
19340
30805
Angle Roto
16000
16*5mL
22020
30806
Angle Rotor
16000
12*7mL
21380
30807
Angle Rotor
10000
12*15mL
11840
30808
Angle Rotor
15000
12*10mL
22680
30809
Angle Rotor
15000
8*20mL
22680
30810
Angle Rotor
14000
6*30mL
19060
30811
Angle Rotor
13000
6*50mL
18836
30812
Angle Rotor
12000
6*70mL
15570
30813
Angle Rotor
12000
4*100mL
14850
30814
Angle Rotor
10000
6*100mL
11380
30815
Angle Rotor
16000
6*10mL
21500
30816
Angle Rotor
18000
30*0.5mL
26660
30480
Swing Rotor
15000
4*5mL
19920
30435
Vertical Rotor
16000
16*5mL
16540
30676
Plate Bucket
4000
2*3*48 Holes
2300
30844
Angle Rotor
13000
48*1.5/2mL
17930

Product Brochure

Product Brochure Link here
