The SMI-154BTLCR centrifuge is equipped with the latest VF compressor and PID dynamic intelligent temperature control technology along with a dual-channel frequency conversion refrigeration system . It ranks among the world’s top centrifuges, meeting experimental requirements for high-precision temperature control and ensuring the protection of temperature-sensitive samples. For added safety, it can be fitted with a variety of aerosol-tight buckets when handling hazardous samples.
This centrifuge is an ideal choice for applications in molecular biology, protein research, DNA and RNA analysis, cell separation, and clinical medicine.
7-inch HD touch screen for quick parameter input, with both setting and running parameters displayed at a glance.
Direct touch input for parameter settings, ensuring fast and convenient operation.
User-defined sleep mode can be set based on experimental intervals, providing efficient refrigeration, energy savings, and extended instrument lifespan.
Pre-cooling function available, with customizable settings based on different rotors. It can also be scheduled in advance, allowing experiments to begin immediately upon entering the laboratory.
Up to 100 user-defined program groups can be created and named, making it easier to manage experiments and ensure repeatability.
Provides 11 acceleration and 12 deceleration rates, delivering optimal centrifugation performance.
Running and diagnostic records are saved automatically, enabling users to monitor instrument performance and batch sample separation with ease.
Equipped with an AC variable frequency motor that is maintenance-free, carbon-free, and offers long service life with precise speed control (accuracy within ±10 rpm).
Model | SMI-154BTLCR |
Max. Speed | 21000r/min |
Max. RCF | 32752xg |

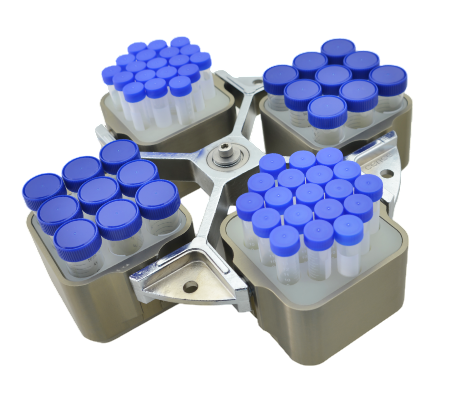

Max. capacity | 4×750ml |
Speed accuracy | ±10r/min |
Time setting range | 1 s to 99min59s/1min to 99h59min |
Timing Mode | Start timing, Speed timing , Continuous timing |
Noise | ≤65dB(A) |
Compressor Unit | VF Compressor Unit (R134a) |
Power supply | AC220V±22V 50Hz |
Power consumption | 1.6 KW |
Dimension (W X D X H) | 713 X 681 X 398 (mm） |
Packing Dimension (W X D X W) | 860 X 810 X 620 (mm) |
Net Weight | 95kg |
Temperature Setting Range | -20 to – 400C |
Pre Cooling Function | Yes |
Temperature Accuracy | Temperature Controlled to 40C + 0.50C at max speed |
Short Spinning | Yes |
Rotor Identification | Yes |
Product Brochure Link here
