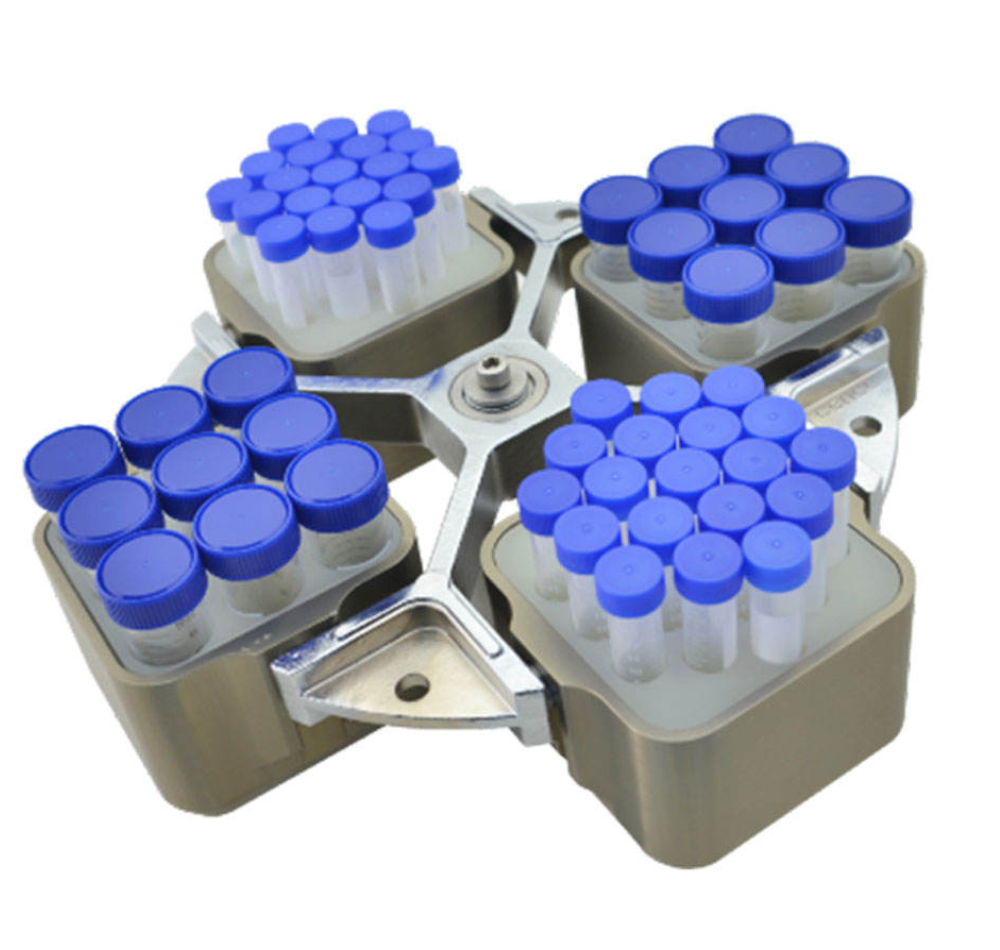

The swing rotor (4 × 750 ml rectangular bucket) can accommodate up to 36 × 50 ml conical tubes, 88 × 15 ml conical tubes, or 168 × 7 ml vacuum blood collection tubes in a single run. Its advanced airflow design helps maintain a low chamber temperature, ensuring the protection of temperature-sensitive samples. The centrifuge accelerates from 0 to 21,000 rpm in just 15 seconds.
All rotors, buckets, and adapters are fully autoclavable, allowing sterilization under high temperature and pressure. This makes it a robust and versatile universal centrifuge suitable for a wide range of laboratory applications.
Comes with a 7-inch high-definition touch screen (800 × 480), ensuring simple operation and an intuitive interface.
Setting and running parameters can be displayed simultaneously.
Parameters can be entered directly via the touch screen, making the process quick and convenient.
Up to 100 user-defined programs can be created and named, making it easier to manage and distinguish different experiments, and ensuring repeatability of results.
Offers 11 acceleration and 12 deceleration rates for optimal centrifugation performance.
Running and diagnostic records are stored automatically, allowing users to efficiently monitor instrument performance and batch sample separation.
Equipped with an AC variable frequency motor that is maintenance-free, carbon-free, provides long service life, and ensures precise speed control (accuracy within ±10 rpm).
Maximum capacity: 4 × 750 ml, with optional aerosol-tight buckets to ensure safe, contamination-free centrifugation.

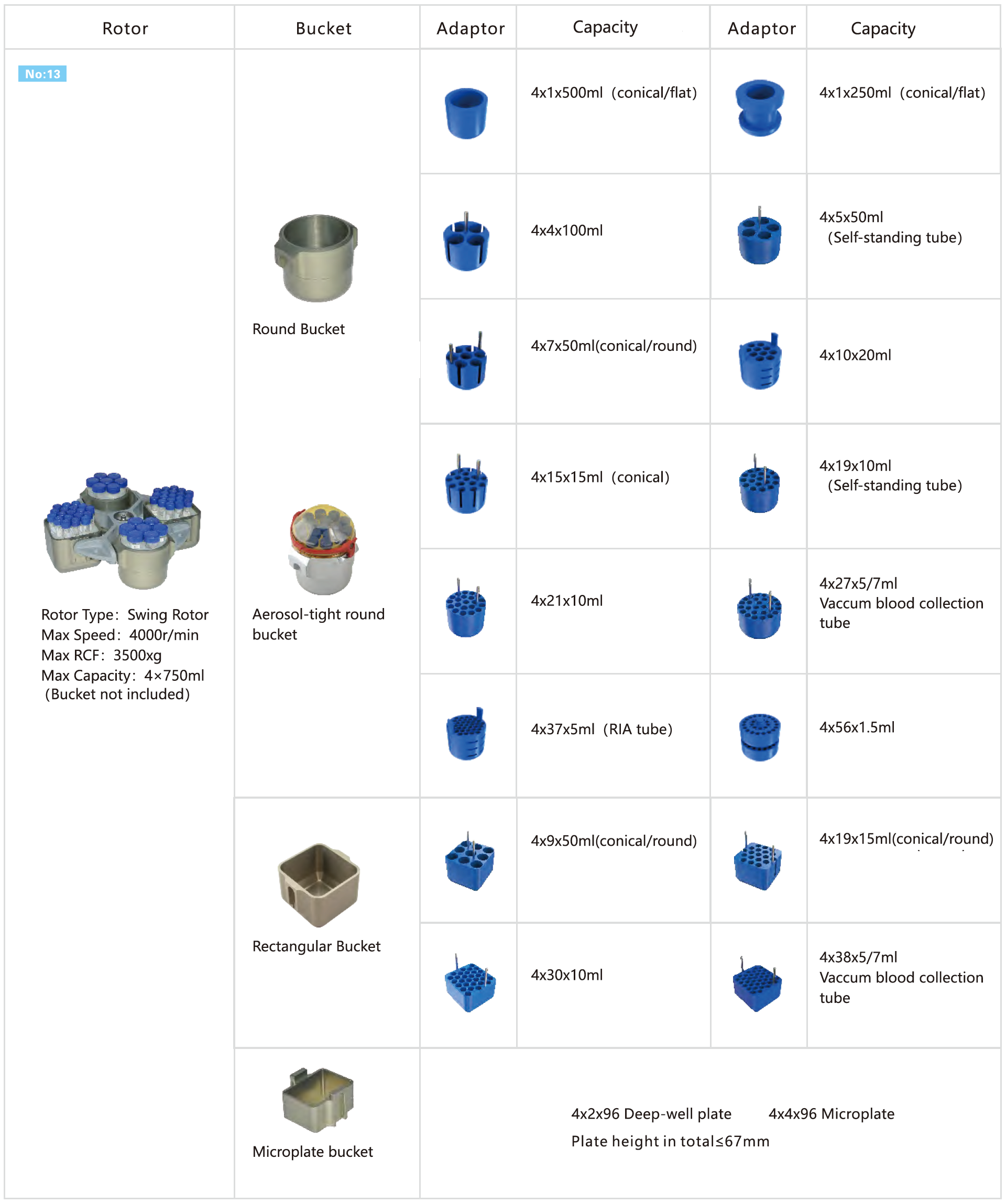

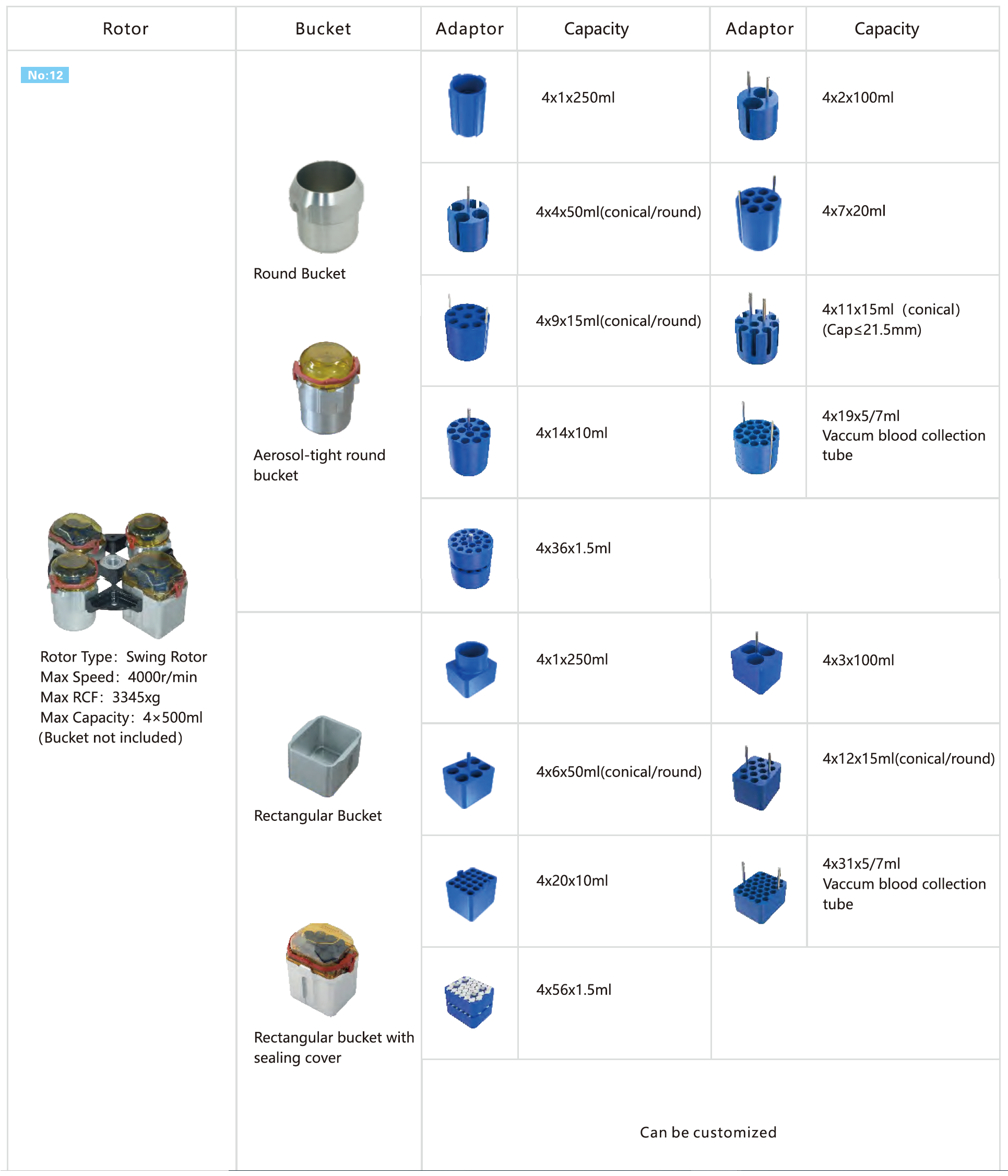

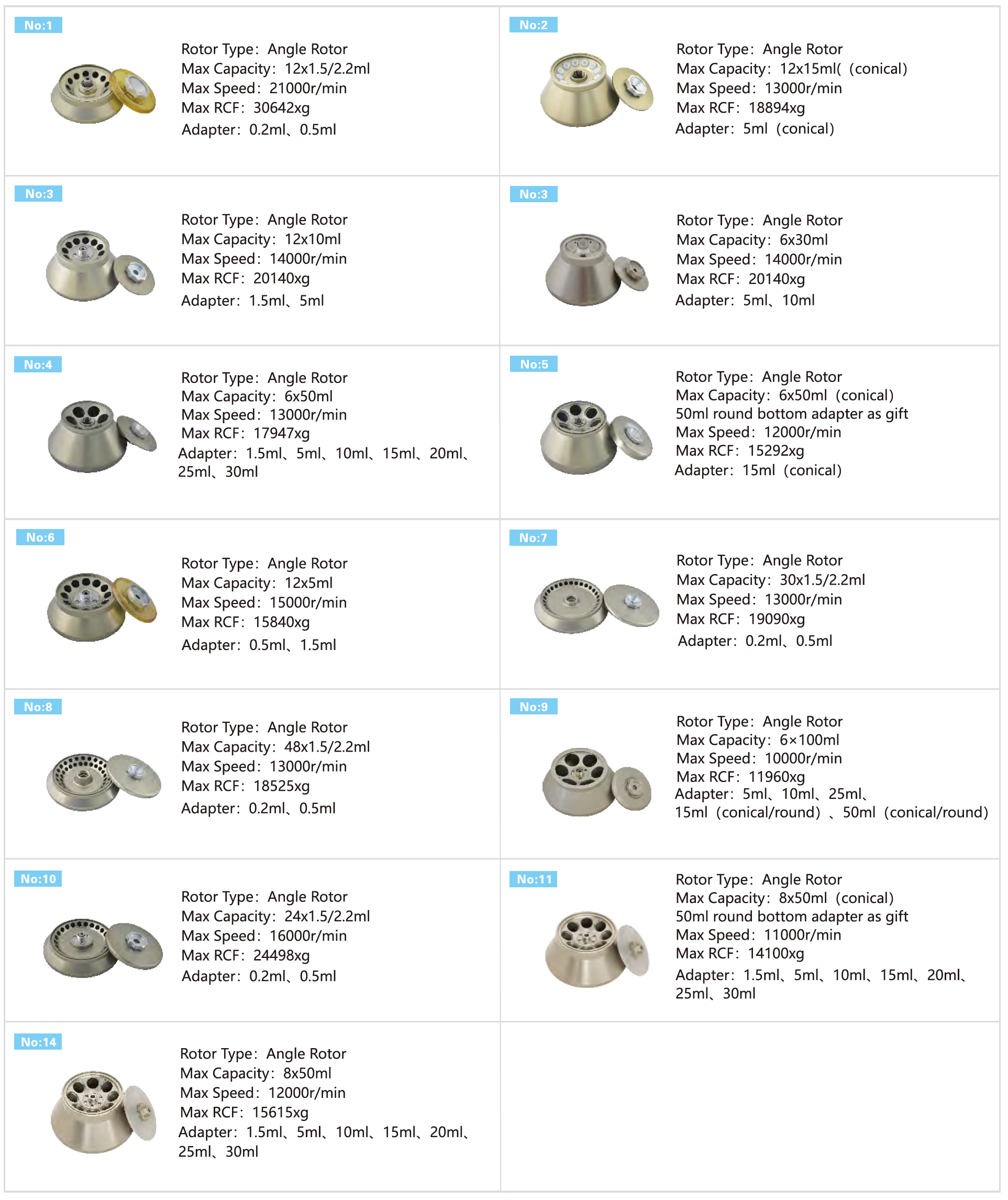

Compatible with 14 types of rotors, suitable for 0.2–750 ml tubes/bottles and MTP. Capable of operating at high speed or large capacity for a wide range of laboratory applications.
Model | SMI-154BTLC |
Max. Speed | 21000r/min |
Max. RCF | 30624xg |
Max. capacity | 4×750ml |
Speed accuracy | ±10r/min |
Temperature setting range | 1 s to 99min59s/1min to 99h59min |
Timing Mode | Start timing , Speed timing and Continuous timing |
Noise | ≤65dB(A) |
| Short spinning | Yes |
| Rotor Identification | Yes |
Power supply | AC220V±22V 50Hz |
Power consumption | 900W |
Dimension (W X D X H) | 510 X 635 X 398（mm） |
Packing dimension (W X D X H) | 660 X 770 X 450（mm） |
Weight | 76kg |
Product Brochure Link here
