The SMI-154BTHLC-20.5K model is an advanced centrifuge developed by Jindal . It is a preferred choice for applications in molecular biology, cell culture, sample separation, and clinical medicine.
Microprocessor control with touch panel and LCD display.
AC frequency-conversion motor with an environmentally friendly compressor unit.
Automatic rotor identification system to prevent over-speed.
Storage for up to 99 user-defined programs for flexible operation.
Comprehensive protection system against imbalance, over-speed, over-temperature, with electronic door interlock for safe operation.

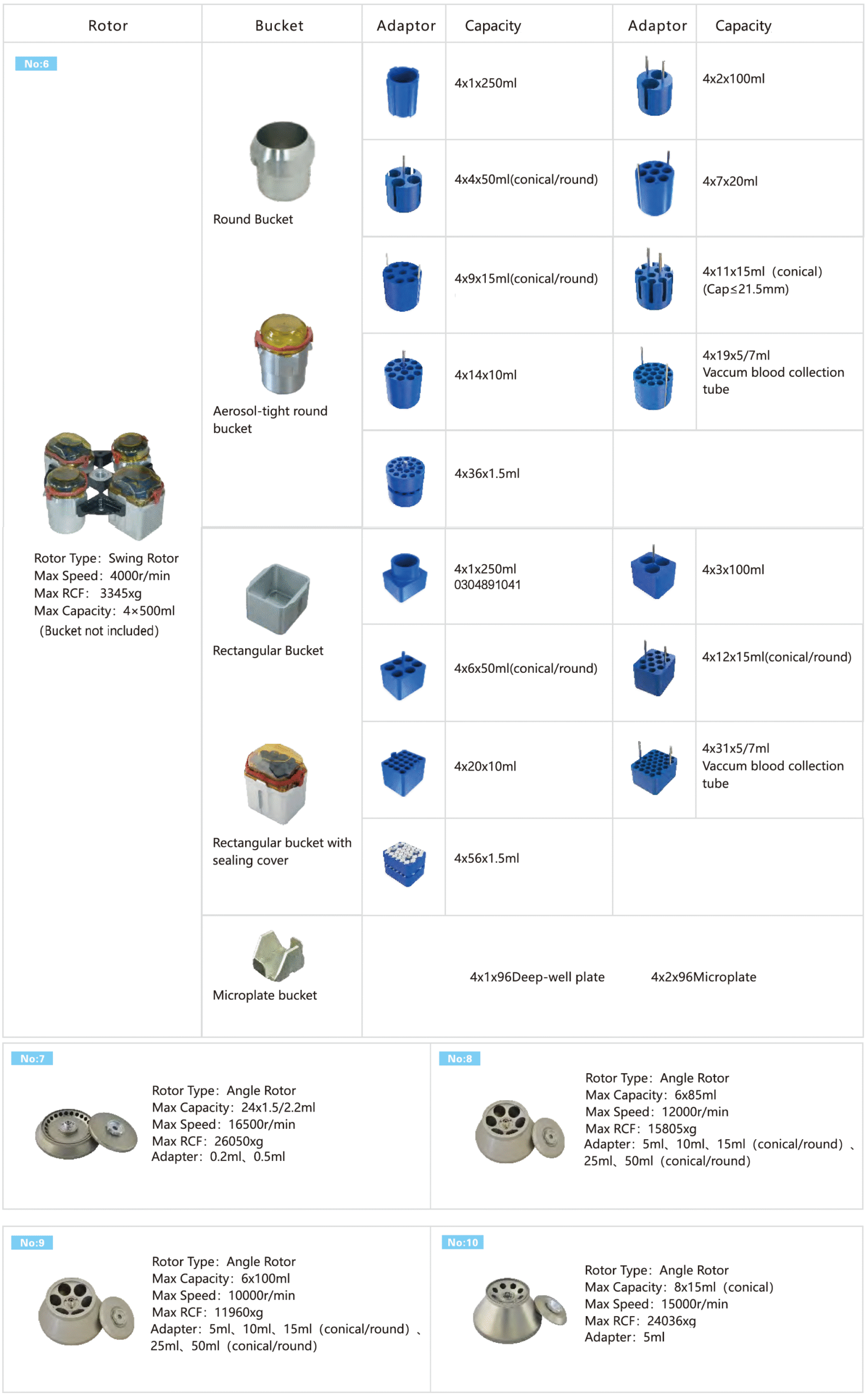

Rotor capacity: Angle rotor (12 × 1.5 ml) with a maximum speed of 21,000 rpm (30,642 × g), and large-capacity rotor up to 4 × 750 ml.
10 acceleration and 11 deceleration rates to ensure optimal centrifugation results.
Model | SMI-154HSRC-20.5K |
Max. Speed | 20500r/min |
Max. RCF | 29200xg |
Max. capacity | 4×750ml |
Speed accuracy | ±10r/min |
Time setting range | 1 s to 99min59s or hold |
Noise | ≤65dB(A) |
Compressor Unit | High Performance Compressor Unit, environment friendly refrigeration (R404a) |
Power supply | AC220V±22V 50Hz |
Power consumption | 1500W |
Dimension (W X D X H) | 550 X 650 X 840 (mm） |
Packing Dimension (W X D X W) | 756 X 856 X 1320 (mm) |
Net Weight | 110kg |
Temperature Setting Range | -20 to – 400C |
Temperature Accuracy | + 10C |
Product Brochure Link here
