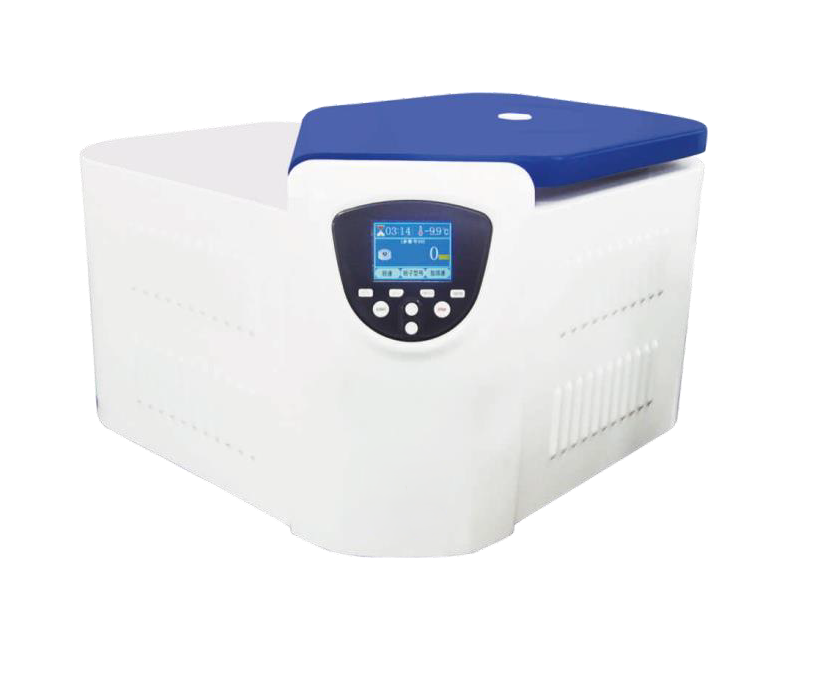

The SMI-154I-12 to 24K series represents Jindal centrifuges, featuring a wide range of optional fixed-angle and swing-out rotors, along with support for up to 100 customizable programs. These centrifuges are ideally suited for applications such as bacterial and protein precipitation, nucleic acid isolation, cell and subcellular fractionation, and environmental sample analysis
Stable & Quiet Operation: Single-chip microcontrollers, in-house control boards, and high-torque AC/DC brushless motors ensure smooth, low-noise performance.
Efficient Temperature Control: Imported fluorine-free compressors with eco-friendly R404a; range -20℃ to +40℃; pre-cooling, standby cooling, heating, and defrosting functions.
Safety Features: Overspeed, overheating, imbalance, undervoltage, and overvoltage warnings; three-stage damping shock absorbers prevent sample resuspension.
User-Friendly Interface: TFT-LCD true-color display; touch screen and physical keys; display of set and real-time parameters; parameter adjustment during operation; multi-language menu (Chinese, English, Russian, Portuguese).
Biosafety Rotor: Airtight fixed-angle rotor with integral silicone seal (EU RoHS compliant) to prevent aerosol leakage.
Durable Construction: Stainless steel chamber; all-steel plastic-sprayed housing; integrally formed steel front cover; three-layer protective steel cover.
Compact & Stylish Design: Diamond-shaped industrial design saves bench space and fits lab corners.
Secure Door Lock: Silent mechatronic motor lock automatically secures door when gently closed.
Customizable Programs: 10-level acceleration/deceleration; stores up to 100 user-defined programs; quick access to frequently used programs on power-on.

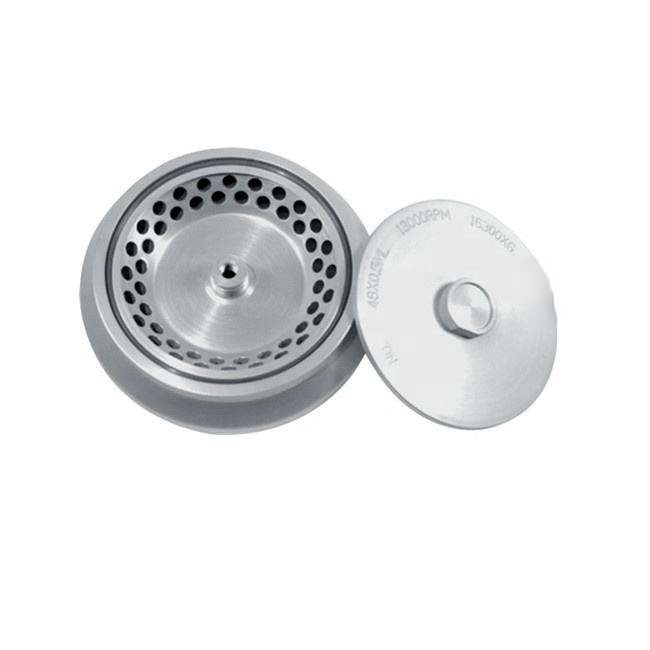

Rotors: Forged aerospace aluminum, fixed-angle.
Adapters: Optional polyamide fiber.
Tube Range: 0.2 mL – 100 mL, tubes & bottles.
Plates: MTP, PCR, and cell culture plates compatible.

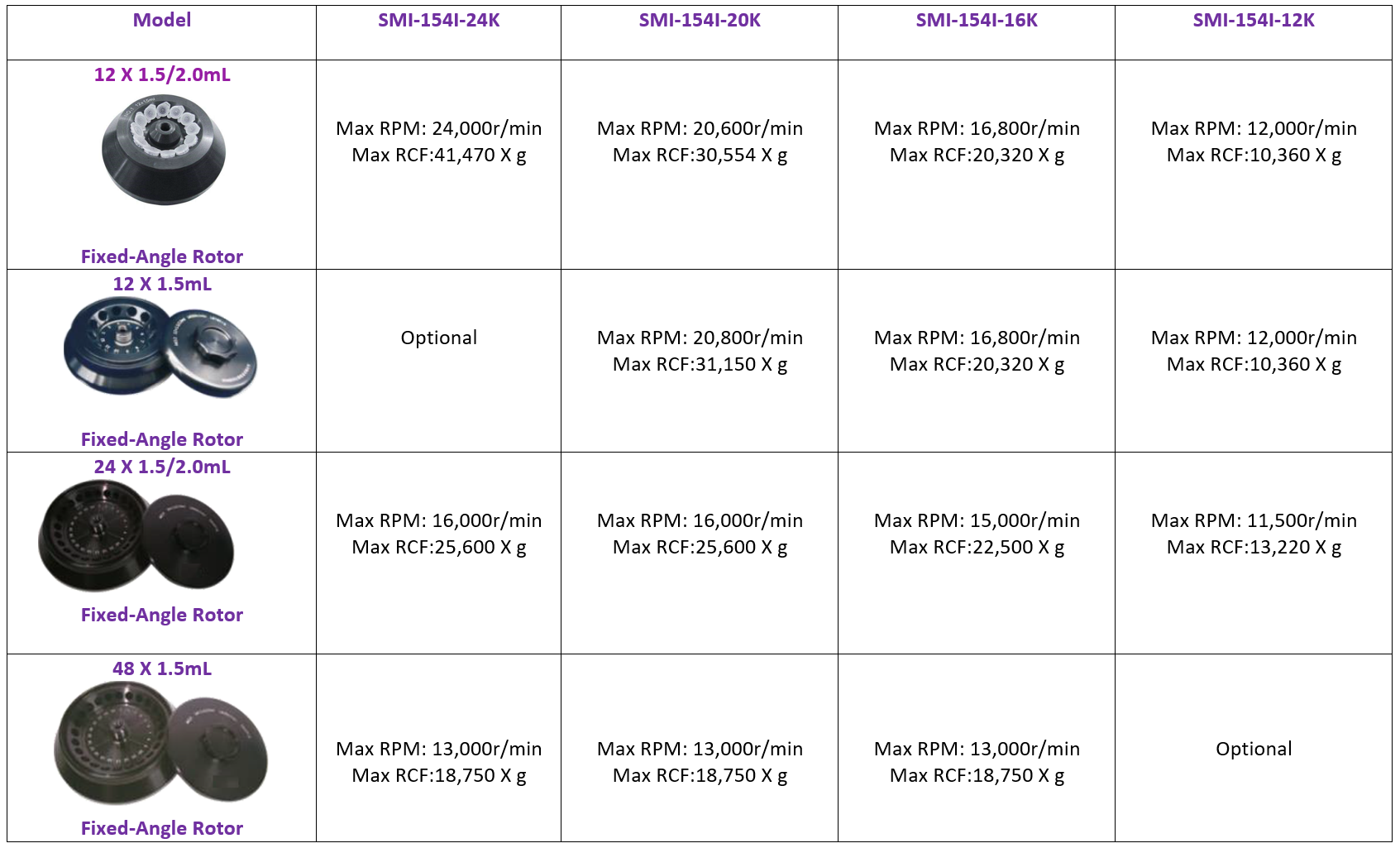

Model | SMI-154I-24K | SMI-154I-20K | SMI-154I-16K | SMI-154I-12K |
Max. RPM | 24000r/min | 20600r/min | 16800r/min | 12000r/min |
Max. RCF | 41470×g | 30554 ×g | 22500×g | 13220×g |
Standard Rotor | 12×1.5/2.0mL (titanium alloy) | 12×1.5/2.0mL | 12×1.5/2.0mL | 24×1.5/2.0mL |
Max. Capacity | 4×100mL | |||
Speed Accuracy | ±30r/min (customizable, multiples of 10) | |||
Refrigeration System | Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a | |||
Control and drive system | High torque AC/DC brushless motor, microcomputer control | |||
Temperature Control Range | -20℃ to +40℃ | |||
Temperature Control | ±1℃ | |||
Number of running | 100 | |||
Total Power | 1.5kW | |||
Timer Range | 1min-99h59min59s, with continuous centrifugation and instantaneous centrifugation | |||
Noise | ≤65dB(A) | |||
Rotor Recognition | Auto rotor identification (optional) | |||
Weight | 75kg | |||
Dimensions (L X W X H)mm | 710 X 630 X 370 | |||
