S.M. Scientific Instruments (P) LTD

Bench Top High Speed Refrigerated Centrifuges
SMI-154HSR-16 to 20K

Home Centrifuges> Bench Top High Speed Centrifuge>Bench Top High Speed Refrigerated Centrifuges SMI-154HSR-16 to 20K

Bench Top High Speed Refrigerated Centrifuges SMI-154HSR-16 to 20K

CLICK TO SCAN

Description

These centrifuges offer high-speed refrigerated performance at an economical cost. They are well-suited for applications such as bacterial and protein precipitation, nucleic acid extraction, cell and subcellular fractionation, environmental sample analysis, and clinical specimen processing. Widely applicable across biochemistry, healthcare, food safety, life sciences, agriculture, forestry, animal husbandry, blood centers, and the pharmaceutical and biotechnology industries.

Detailed Images

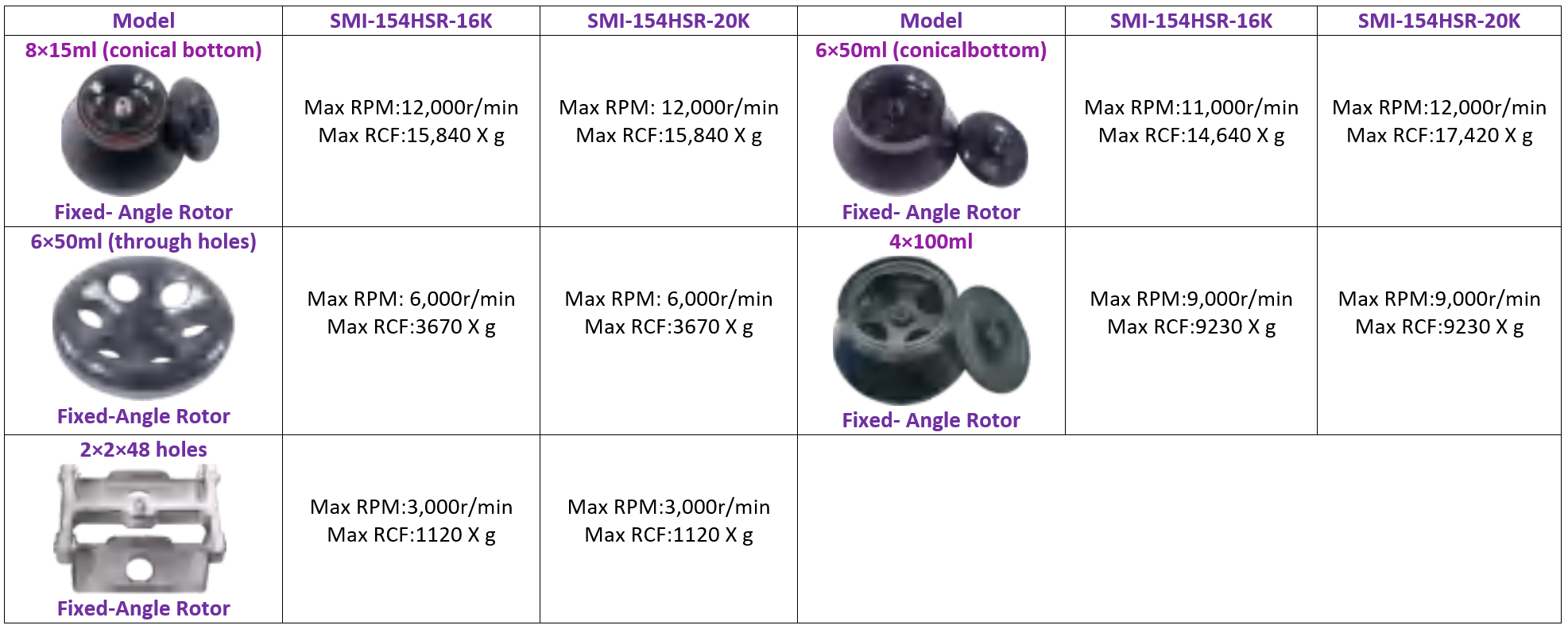

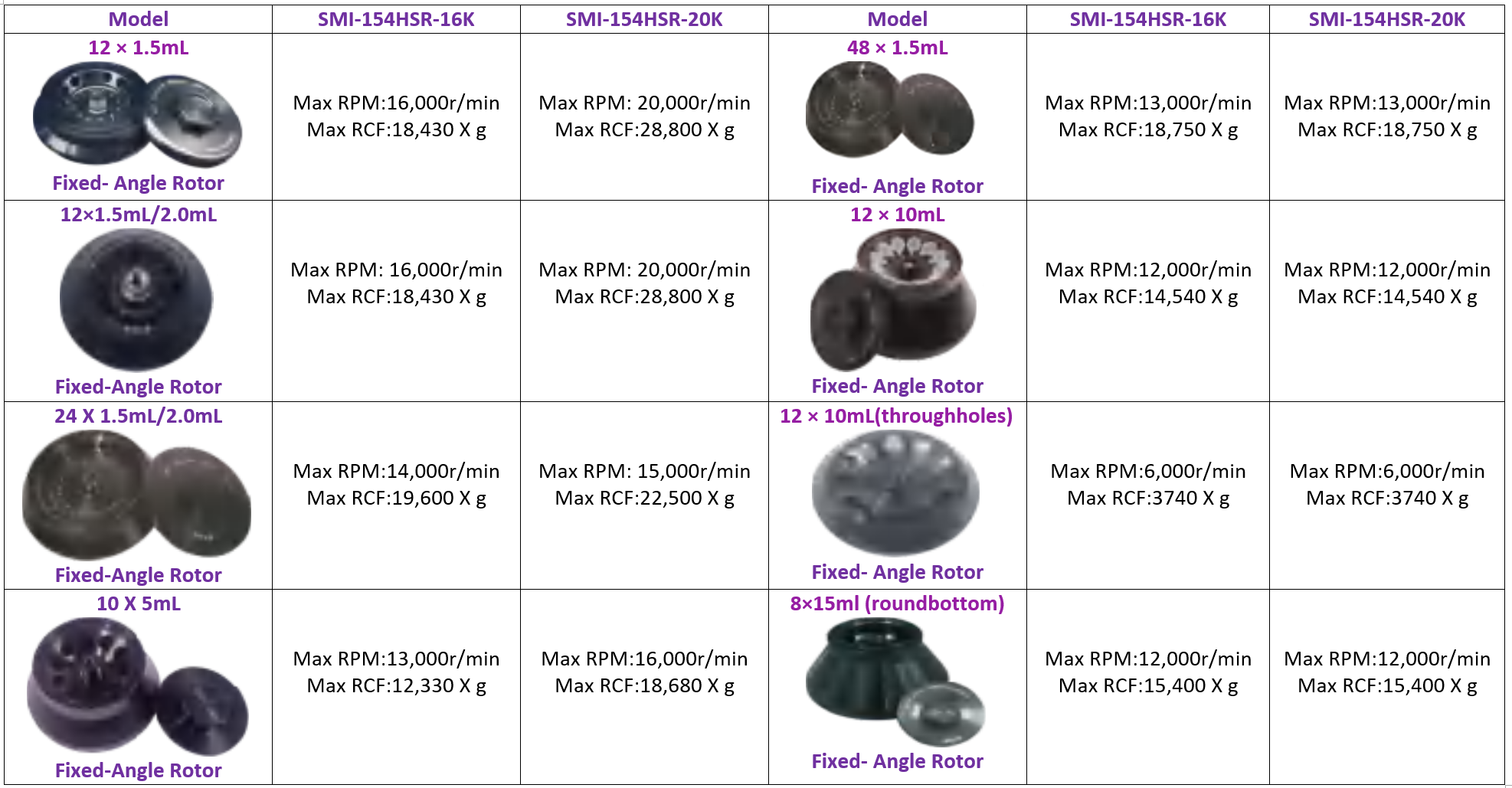

Rotor Specification

Features

  • Stable & Quiet Operation: Equipped with single-chip microcomputers, in-house control boards, and high-torque AC/DC brushless motors for smooth, low-noise performance.

  • Efficient Cooling System: Uses imported fluorine-free compressors and eco-friendly R404a refrigerant; temperature range: -20°C to +40°C with pre-cooling and standby cooling functions.

  • Comprehensive Safety Protection: Features overspeed, overheating, imbalance, undervoltage, and overvoltage warnings with advanced shock absorption for smooth, safe operation.

  • User-Friendly Interface: TFT-LCD color display with touch and key controls, dual parameter display, real-time adjustment, and multi-language support (Chinese, English, Russian, Portuguese).

  • Biosafety Rotor: Airtight fixed-angle rotor with silicone rubber sealing ring (EU RoHS compliant) to prevent aerosol leakage.

  • Durable Construction: Grade 304 stainless steel chamber with reinforced all-steel housing, stamped front cover, and triple-layer protection for maximum safety.

  • Space-Saving Design: Elegant diamond-shaped body fits neatly in lab corners to save bench space.

  • Secure Door Lock: Quiet mechatronic motor lock system automatically engages when the door is gently closed.

  • Customizable Programs: 10 acceleration/deceleration levels; stores up to 20 user-defined programs with quick recall of last-used settings.

  • Versatile Rotors: Aerospace-grade forged aluminum fixed-angle rotors with optional polyamide adapters for MTP, PCR, cell culture, and deep well plates.

Technical Data:

Model

SMI-154HSR-16K

SMI-154HSR-20K

Max. RPM

16000r/min

20000r/min

Max. RCF

22500xg

28800xg

Standard Rotor

12×1.5/2.0mL

Max. Capacity

4 X 100ml

Speed Accuracy

±30r/min (customizable, multiples of 10)

Refrigeration System

Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a

Control & Drive System

High torque AC/DC brushless motor, microcomputer control

Temperature Control Range

-20℃ to +40℃

Temperature Control

±1℃

Timer Range

1min-99h59min59s, with continuous centrifugation and instantaneous centrifugation

Total Power

1.5kW

Noise

≤65dB(A)

Weight

73kg

Dimension (L X W X H)mm

710 X 630 X 370

Product Brochure

Product Brochure Link here
