S.M. Scientific Instruments (P) LTD

Bench Top High Speed Refrigerated Centrifuge
SMI-154BTHSRC-24K

Home Centrifuges> Bench Top High Speed Centrifuge>Bench Top High Speed Refrigerated Centrifuge SMI-154BTHSRC-24K

Bench Top High Speed Refrigerated Centrifuge SMI-154BTHSRC-24K

CLICK TO SCAN

Description

  • Wide Application Range: Compatible with more than ten different rotors and a variety of adapters, meeting diverse application needs in major laboratories.

  • Versatile Use Cases: Suitable for clinical medicine, bacterial studies, protein precipitation, nucleic acid extraction, cellular and subcellular fractionation, as well as environmentally friendly sample processing.

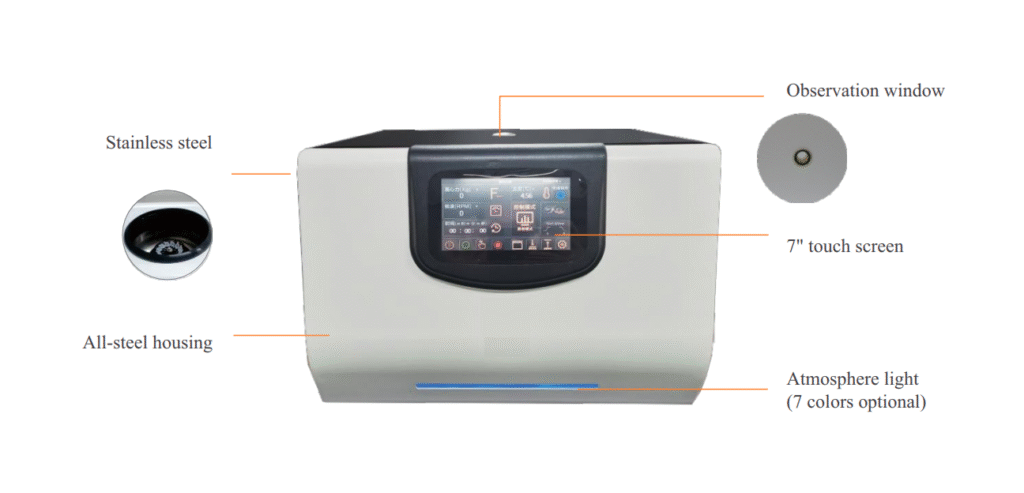

Detailed Images

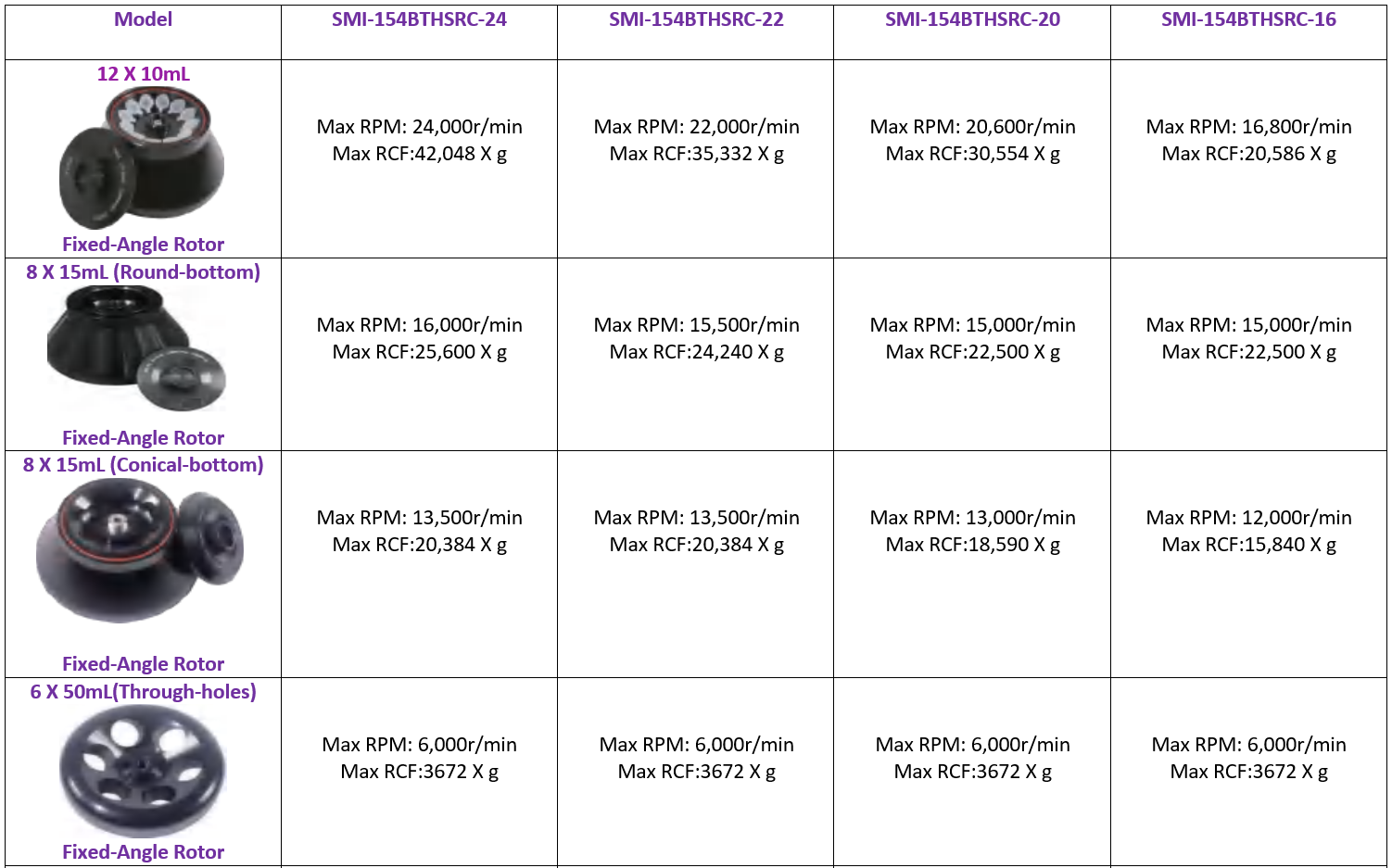

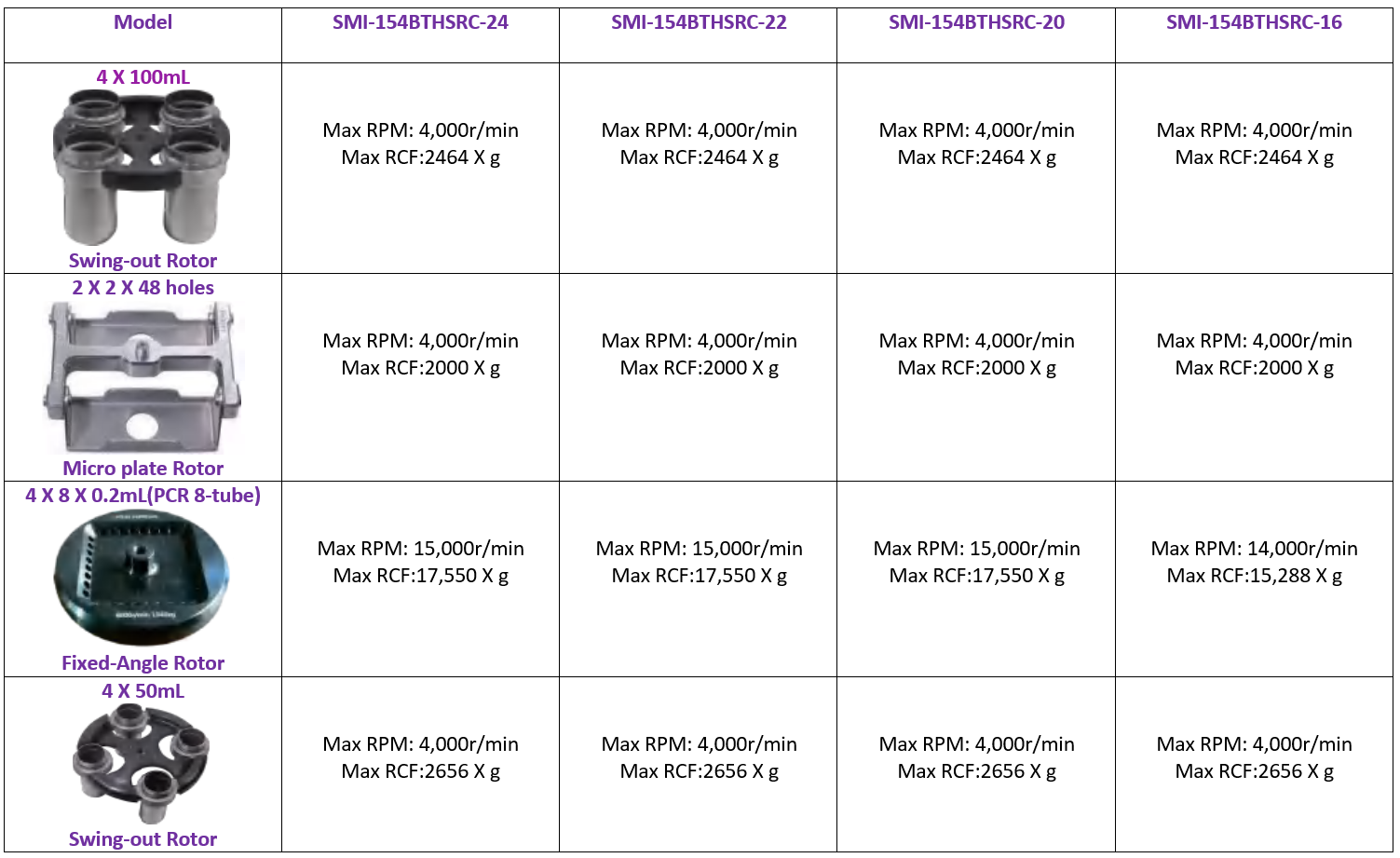

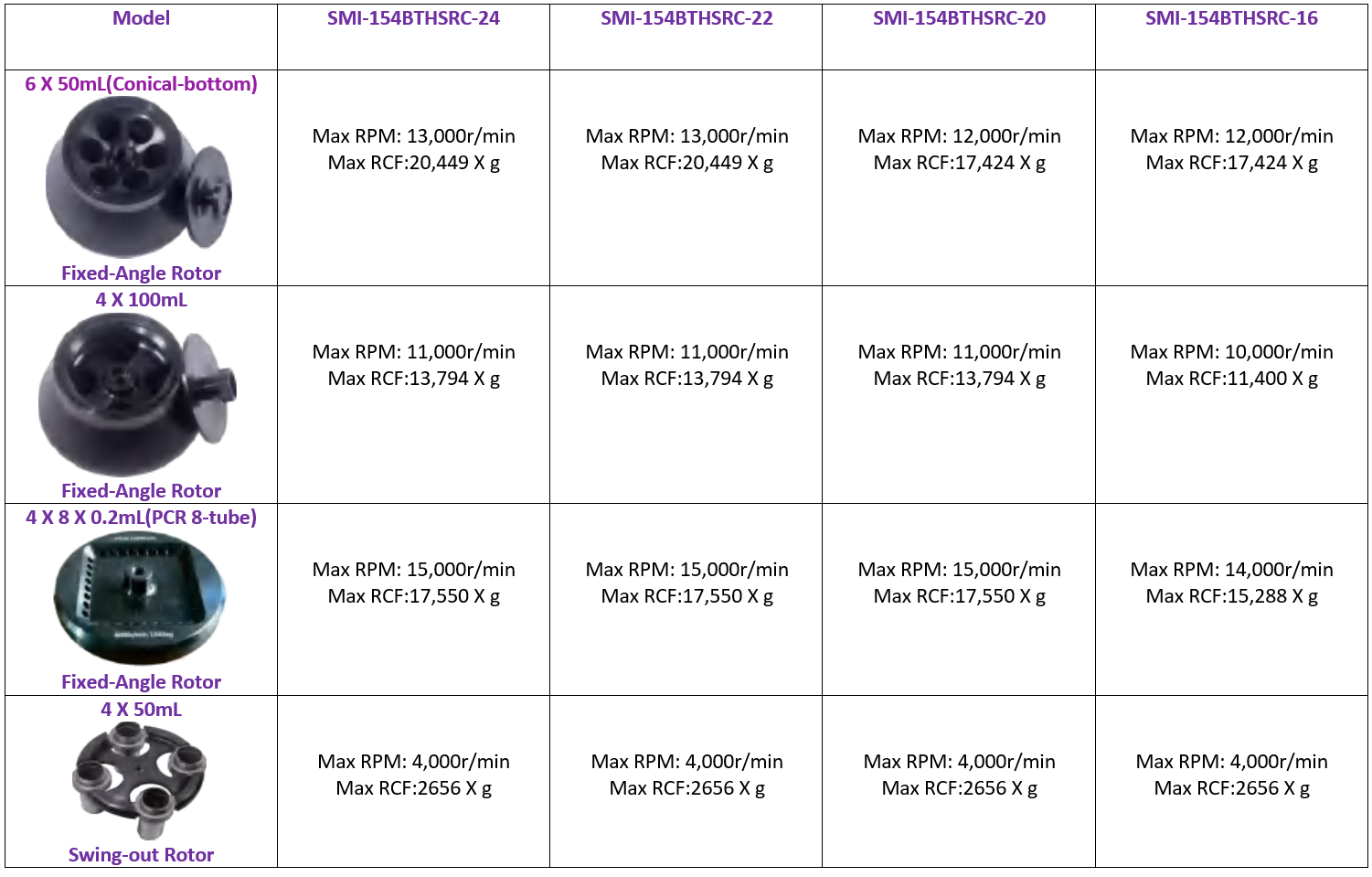

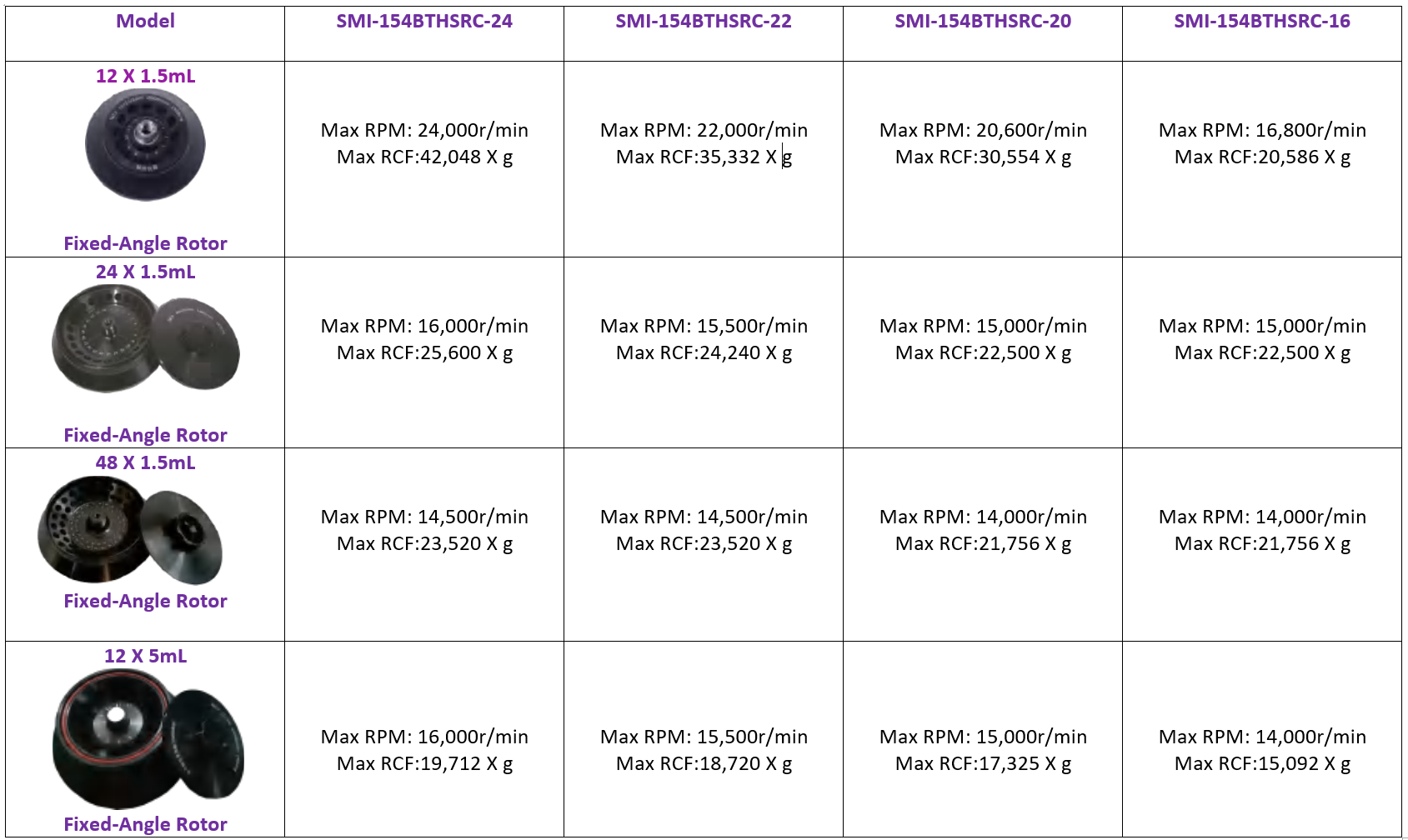

Rotor Specification

Features

  • Smart Control: XIUI3.0 OS with microcomputer control, programmable operations, and brushless DC motor for precise speed.

  • Intuitive Operation: 7″ LCD touch screen with real-time display, digital input, and seven-color atmosphere lighting.

  • Efficient Cooling: Fluorine-free R404a refrigeration with pre-cooling, wide temperature range (-20°C to +40°C), and constant-temperature centrifugation.

  • Safety & Durability: Multiple protections (overspeed, imbalance, overtemperature, etc.), fluorosilicone seal ring, stainless steel chamber, and aerosol prevention design.

  • Convenient Design: Electronic lock with one-button lid opening, anti-pinch function, quiet operation, and hidden drainage system.

  • Flexible Connectivity: Optional Bluetooth and Type-C interfaces for data transfer, upgrades, and remote control.

  • Programmable Versatility: 99 program storage with advanced modes (timing, gradient, density, point control).

  • Rotor Options: Automatic rotor recognition with secure parameter locking and in-operation adjustments.

  • Versatile Rotor Options: Multi-specification forged aerospace aluminum fixed-angle rotors with a wide range of optional polyamide fiber adapters.

  • Broad Compatibility: Suitable for 0.2 mL to 100 mL centrifuge tubes and reagent bottles.

  • Plate Centrifugation: Capable of centrifuging MTP microplates, PCR plates, cell culture plates, and deep well plates.

Technical Data:

Model No.

SMI-154BTHSRC-24K

SMI-154BTHSRC-22K

SMI-154-BTHSRC-20K

SMI-154-BTHSRC-16K

Max. Capacity

4 X 100mL

Max. RPM

24000r/min

22000r/min

20600r/min

16800r/min

Max. RCF

42048 X g

35332 X g

30554 X g

22500 X g

Speed Accuracy

±20r/min (customizable, multiples of 10)

Control and drive system

Microcomputer control, maintenance-free large-torque DC/ inverter brushless motor

Display Mode

7″ wide-angle LCD touch screen

Operation Mode

Touch control (with local control optional)

Rotor Recognition

Automated loading and locking of rotor parameters (optional)

Refrigeration system

Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a

Temperature control range

-20℃ to + 40℃

Temperature control accuracy

±1℃

Acceleration & Deceleration Curves

10 Steps

Timer range

1s-99h59min59s, with continuous centrifugation and instantaneous centrifugation

Total power

1kW

Noise

≤65dB(A)

Power

AC220V 50Hz

Weight

74Kg

Dimensions (L X W X H)mm

505 X 650 X 376

Product Brochure

Product Brochure Link here
