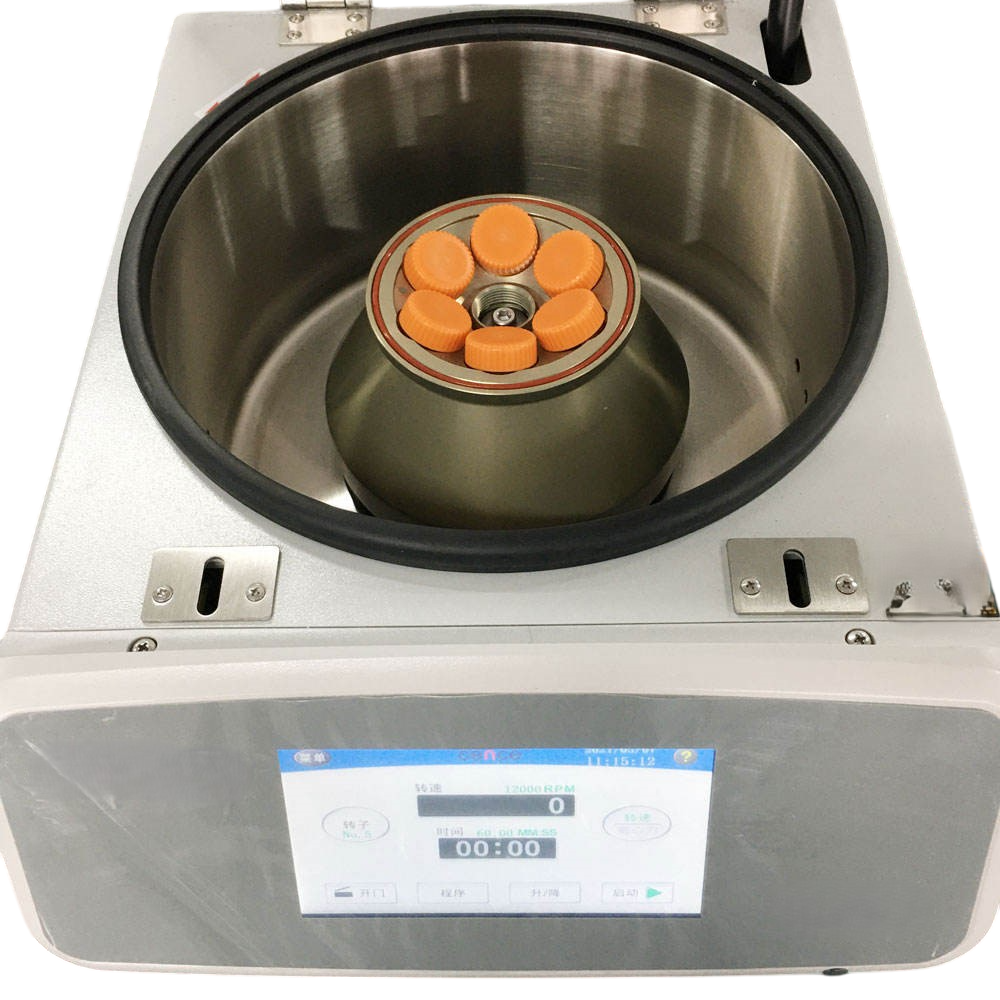

The SMI-154BTHR-18.5K is a compact benchtop centrifuge designed for high-speed, refrigerated applications. With 15 interchangeable rotors of varying capacities, it offers exceptional versatility for a wide range of laboratory needs. This model supports centrifugation of microtubes, PCR strips, microplates, 15 ml/50 ml Falcon tubes, and evacuated blood collection tubes. Equipped with a 24 × 1.5 mL rotor reaching up to 17,500 rpm, the SMI-154BTHR-18.5K delivers performance comparable to larger floor-standing centrifuges, while maintaining a convenient benchtop size.
7-inch touchscreen display – Intuitive interface with all parameters visible at a glance.
VF compressor with PID intelligent temperature control – Ensures precise, energy-efficient cooling.
Multiple program storage – Users can save and name programs for quick and convenient recall.
Automatic rotor identification – Built-in system prevents over-speed operation.
Acceleration and deceleration control – 11 acceleration and 12 deceleration rates, with adjustable free parking time.
Comprehensive safety protections – Multiple self-diagnostic functions guard against door interlock failure, over-speed, overheating, misoperation, motor errors, and communication faults, ensuring user safety.
Condensation protection – Integrated water collection tank prevents condensation buildup and corrosion, extending instrument service life.
Model | SMI-154BHR-18.5K |
Max. Speed | 18500r/min |
Max. RCF | 29302xg |
Max. capacity | 4×100ml |
Speed accuracy | ±10r/min |
Time setting range | 1 s to 99min59s/1min to 99h59min |
Timing Mode | Start timing, Speed timing , Continuous timing |
Noise | ≤65dB(A) |
Compressor Unit | VF Compressor Unit (R134a) |
Power supply | AC220V±22V 50Hz |
Power consumption | 1KW |
Dimension (W X D X H) | 380 X 660 X 330 (mm） |
Packing Dimension (W X D X W) | 480 X 940 X 460 (mm) |
Net Weight | 62kg |
Temperature Setting Range | -20 to – 400C |
Pre Cooling Function | Yes |
Temperature Accuracy | + 10C |
Short Spinning | Yes |
Rotor Identification | Yes |
Product Brochure Link here
