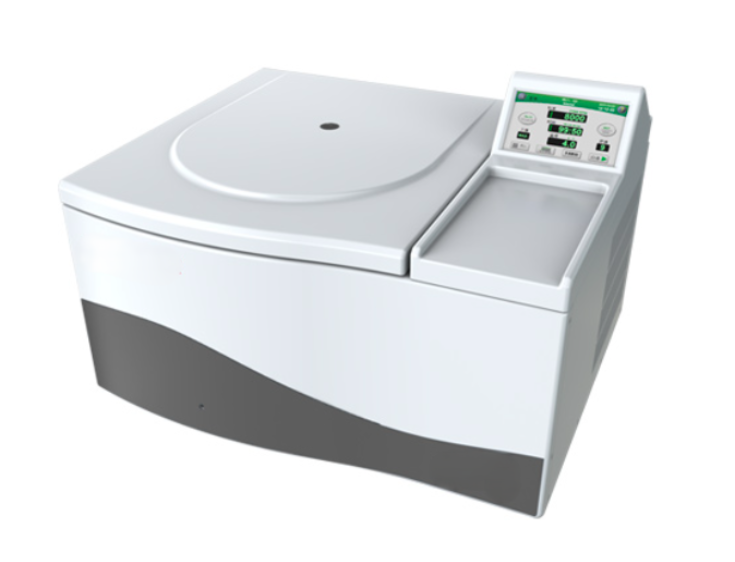

Bench Top High Speed Refrigerated Centrifuge SMI-154BT

CLICK TO SCAN

Description

Benchtop High-Speed Refrigerated Centrifuge SMI-154BT delivers an efficient and economical solution.

Using EP tubes, it achieves a maximum centrifugal force of 25,100 × g (19,000 rpm). A wide range of rotors and adapters are available, ensuring reliable performance.

Compatible with tubes from 0.2 ml to 250 ml, as well as MTP, PCR, and deep-well plates.

Detailed Images

Rotor Specification

Features

  • 7-inch High-Sensitivity HD Touchscreen – Can be operated even with gloves, ensuring simple and accurate control. All running parameters are displayed simultaneously for easy monitoring.

  • Large Data Storage – Stores several months of operation logs, error reports, and performance records, making it convenient for tracking and reviewing usage history.

  • Easy Parameter Input – Directly set speed, time, RCF, acceleration, and deceleration values on the screen, offering greater precision and convenience compared to traditional knob controls.

  • Automatic Lid Locking – Enhances user safety by preventing accidental opening during operation.

  • Program Storage – Multiple programs can be saved for quick use. Supports 5-step centrifugation to meet diverse experimental requirements.

  • On-Screen Records – Operating and diagnostic records can be viewed instantly on the display.

  • Custom Acceleration & Deceleration Profiles – Provides 10 acceleration and 11 deceleration settings to minimize re-emulsification or turbidity, ensuring optimal separation results.

  • Rotor Identification System – Automatically detects rotors to prevent over-speed operation.

  • Comprehensive Safety Features – Includes self-diagnostic protection against door lock errors, motor overheating, over-speeding, misoperation, and communication faults.

  • Ergonomic Design – One-piece molded front panel and door lid with a streamlined, user-friendly design that is both durable and elegant.

  • Versatile Rotor Options – Equipped with 12 angle rotors and 4 swing rotors, accommodating 0.2–250 ml tubes, bottles, and microplates. Designed for both high-speed and large-capacity separations.

Technical Data:

Model
SMI-154BT
Max. Speed
19000r/min
Max. RCF
31006xg
Max. capacity
4×250ml
Speed accuracy
±10r/min
Temperature setting range
-20℃ to 40℃
Temperature accuracy
±1℃
Compressor unit
1min to 99h59min
Time setting range
high performance compressor unit
Noise
≤65dB(A)
Power supply
AC220V±22V 50Hz
Power consumption
1500W
Dimension (W X D X H)
710 X 560 X 450(mm)
Packing dimension (W X D X H)
1022 X 712 X 630(mm)
Weight
95kg

Rotor Option Data

Rotor No.

Rotor Type

Max. Speed (r/min)

Max. RCF (xg)

Capacity



No.1

Angle Rotor

19000

25100

12 X 1.5/2.2ml

Adaptor

0.2ml/0.5ml

No.2

Angle Rotor

14000

21912

12 X 15ml (Conical)

Adaptor

1400021912

5ml

No.3

Angle Rotor

16000

26310

12 X 10ml

Adaptor

1600026310

1.5ml/5ml

No.4

Angle Rotor

13000

17938

6 X 50ml

Adaptor

1300017938

1.5/5/10/15/20/25/30ml

No.5

Angle Rotor

12500

16585

6 X 50 (conical) 50ml round bottom adaptor as gift

Adaptor

1250016585

15ml (Conical)

No.6

Angle Rotor

12000

15471

4 X 100ml

Adaptor

1200015471

5/10/15/25/50ml (Conical/Round)

No.7

Angle Rotor

16000

28917

30 X 1.5/2ml

Adaptor

1600028917

0.2ml/0.5ml

No.8

Angle Rotor

16000

28061

48 X 1.5/2ml

Adaptor

1600028061

0.2ml/0.5ml

No.9

Angle Rotor

12000

15805

6 X 85ml

Adaptor

1200015805

5/10/15/25/50ml (Conical/Round)

No.10

Angle Rotor

5500

4904

40 X 15ml

Swing Rotor Yoke

4200

3450

4 X 250ml

No.11











Oval Bucket











4200











3450

4 X 26 X1.5ml



4 X 10 X 5ml

4 X 14 X 5/7ml

4 X 13 X 10ml

4 X 9 X 15ml (Conical)

4 X 9 X 15ml

4 X 6 X 20ml

4 X 4 X 50ml (Conical)

4 X 4 X 50ml

4 X 2 X 100ml

4 X 1 X 250ml

No.12

Swing Rotor Yoke

4500

3917

4 X 250ml











Rectangular Bucket











4500











3917

4 X 16 X 1.5ml

4 X 17 x 5/7ml

4 X 12 X 10ml

4 X 9 X 15ml (Conical)

4 X 4 X 50ml (conical)

4 X 1 X 100ml

4 X 1 X 250ml

No.13

Swing Rotor

5000

3773

4 X 100ml







Adaptor







5000







3773

4 X 3 X 10ml Vacuum Blood collection Tube

4 X 1 X 15ml (Conical)

4 X 1 X 15ml

4 X 1 X 50ml (Conical)

No.14

Swing Rotor

4500

2784

2 X 2 X 96 well





Microplate Bucket





4500





2784

2 X 6 Microplate

2 X 2 Deep Well Plate

2 X 1 Filter Kit

No.15

Swing Rotor

15000

18826

60 X 1.5ml

No.16

Angle Rotor

18000

31006

24 X 1.5/2ml

Adaptor

1800031006

0.2ml/0.5ml

Product Brochure

Product Brochure Link here
