These microcentrifuges are compatible with PCR 8-tube strips and are ideal for rapid precipitation and separation of DNA, RNA, proteins, and viruses. They are widely used in applications such as bacterial and protein precipitation, nucleic acid extraction, cell and subcellular component separation, environmental sample processing, and clinical sample analysis.
Advanced Control: Fast, stable operation with high-torque brushless motor and 25s acceleration/deceleration.
Eco-Friendly Cooling: Fluorine-free compressor and R404a refrigerant; temperature range -20°C to +40°C with pre-cooling and standby functions.
Safety Alerts: Overspeed, overheating, imbalance, under/overvoltage warnings; anti-vibration system prevents sample resuspension.
Smart Display: TFT-LCD screen with touchscreen and keys; shows force and parameters; supports multiple languages.
Biosafety Rotor: Airtight rotor with silicone seal prevents aerosol leakage.
Durable Construction: Stainless-steel chamber with protective outer housing ensures safety and longevity.
Compact Design: Small footprint saves benchtop space.
Secure Door Lock: Silent mechatronic lock automatically secures lid.
Flexible Programs: 10 acceleration levels, stores 20 user-defined programs, recalls last program.

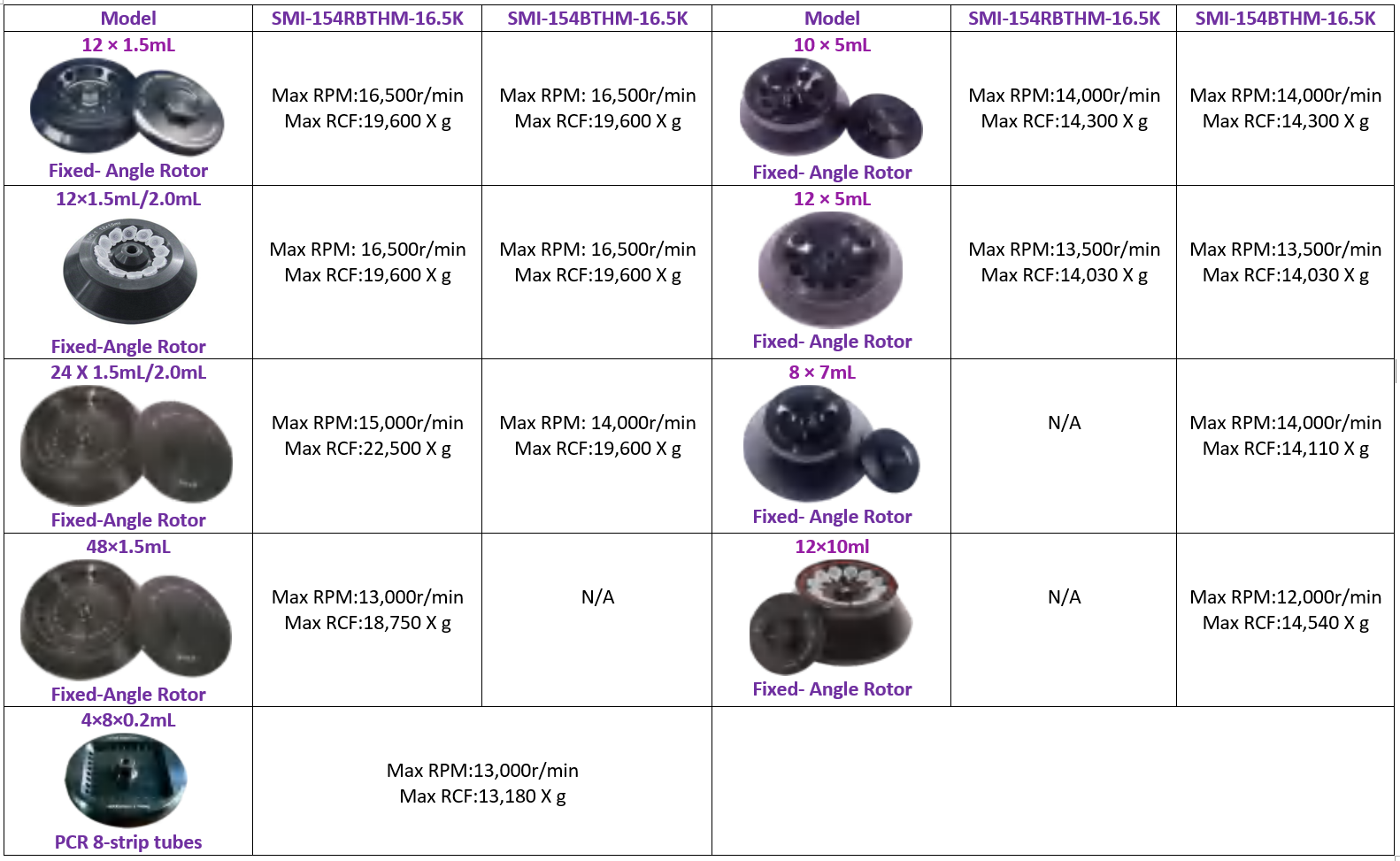

High-Quality Rotors: Forged aerospace aluminum rotors for 0.2–2.0 mL tubes and PCR strips.
Model | SMI-154RBTHM-16.5K | SMI-154BTHM-16.5K |
Max. RPM | 16500r/min | 16500r/min |
Max. RCF | 22500xg | 19600xg |
Standard Rotor | 12×1.5/2.0mL | |
Max. Capacity | 48×1.5ml/2.0ml | 12×10mL |
Speed Accuracy | ±30r/min (customizable, multiples of 10) | |
Refrigeration System | Imported fluorine-free refrigeration compressor unit and eco-friendly refrigerant R404a | No Refrigeration |
Control & Drive System | High torque AC/DC brushless motor, microcomputer control | |
Temperature Control Range | -20℃ to +40℃ | |
Temperature Control | ±1℃ | |
Timer Range | 1min-99h59min59s, with continuous centrifugation and instantaneous centrifugation | |
Total Power | 1.5kW | |
Noise | ≤65dB(A) | |
Weight | 48kg | 18kg |
Dimension (L X W X H)mm | 350 X 680 X 300 | 260 X 380 X 310 |
