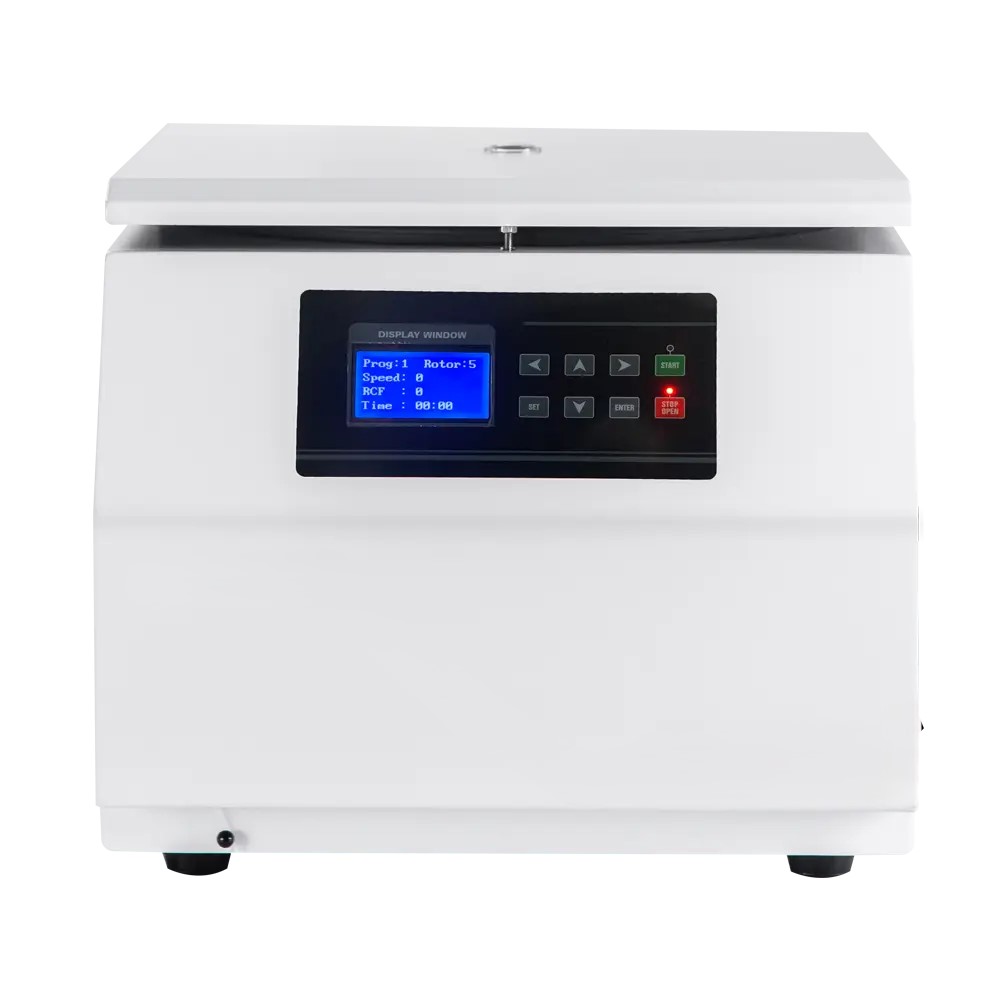

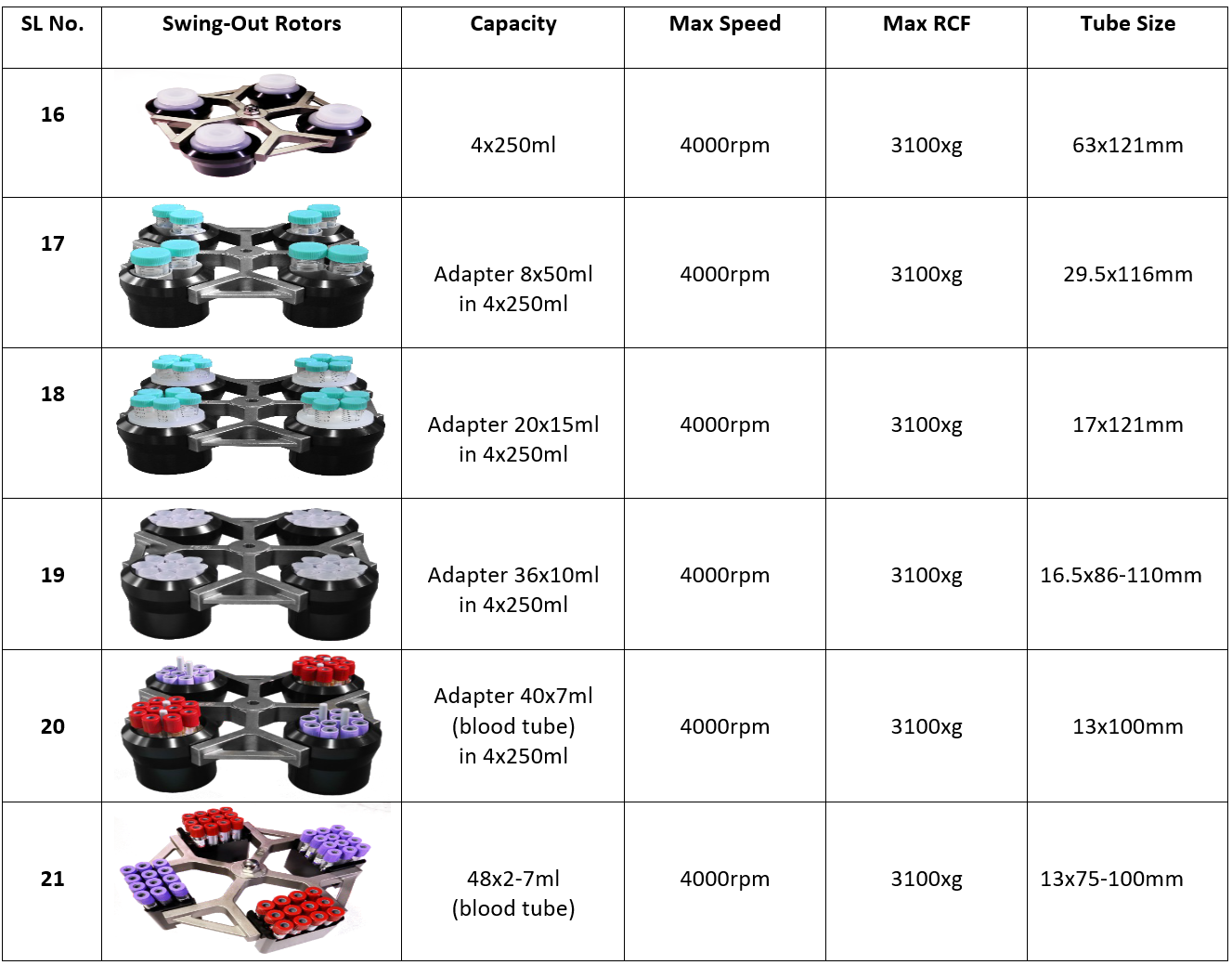

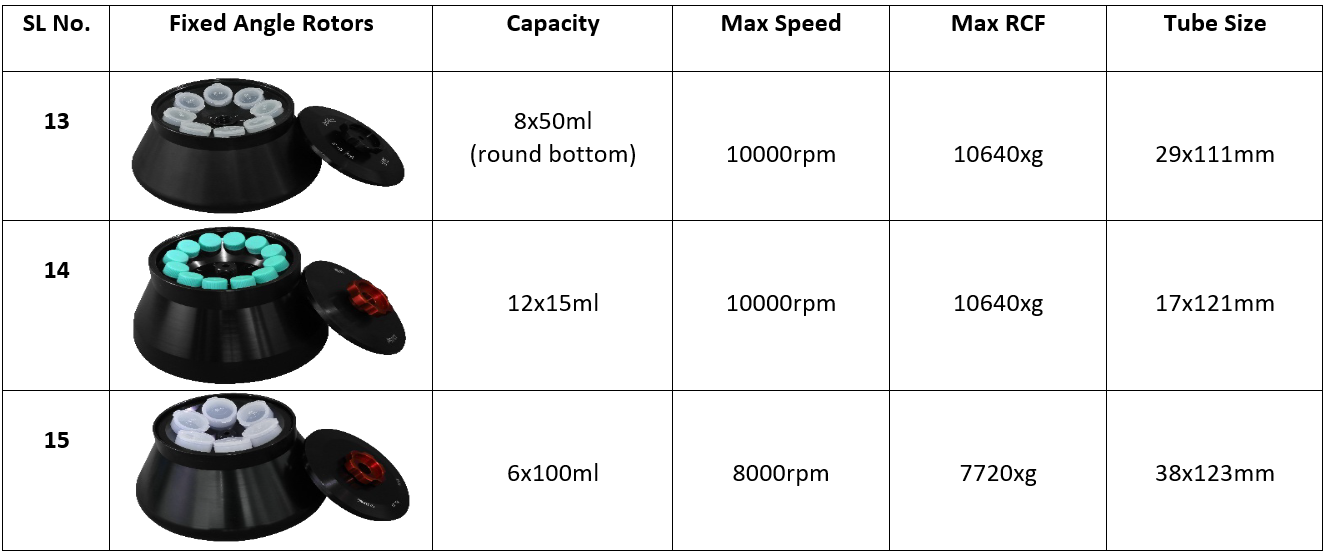

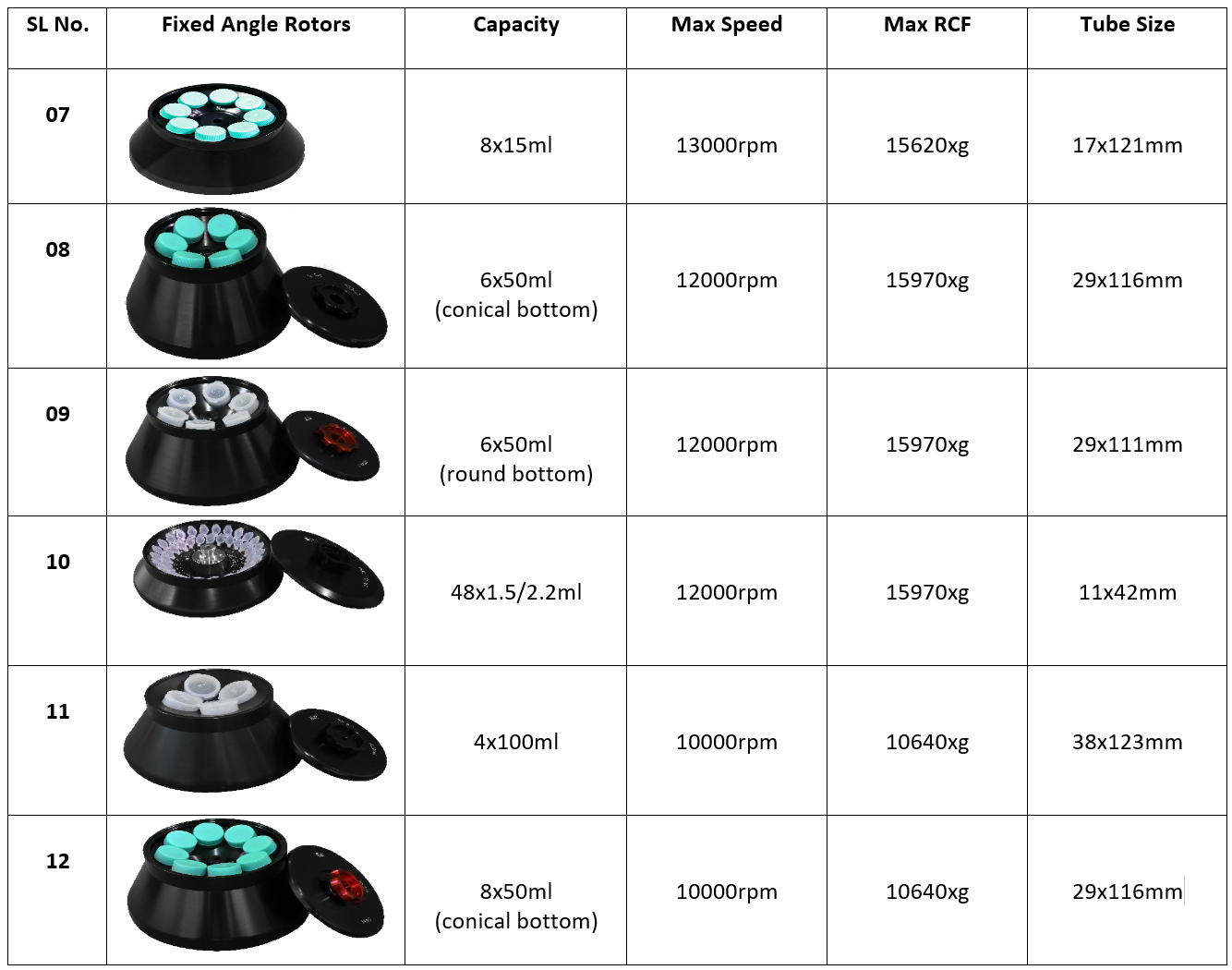

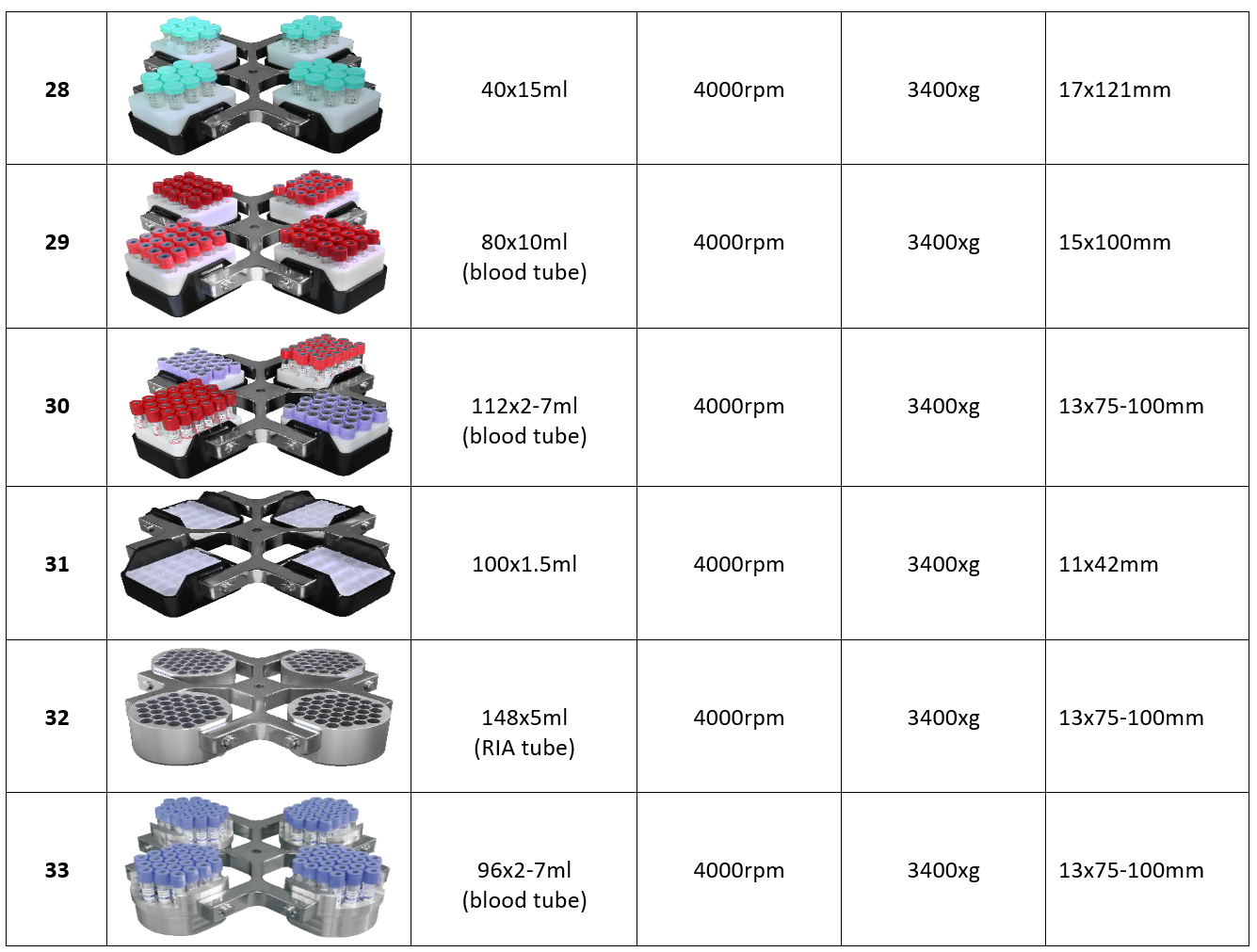

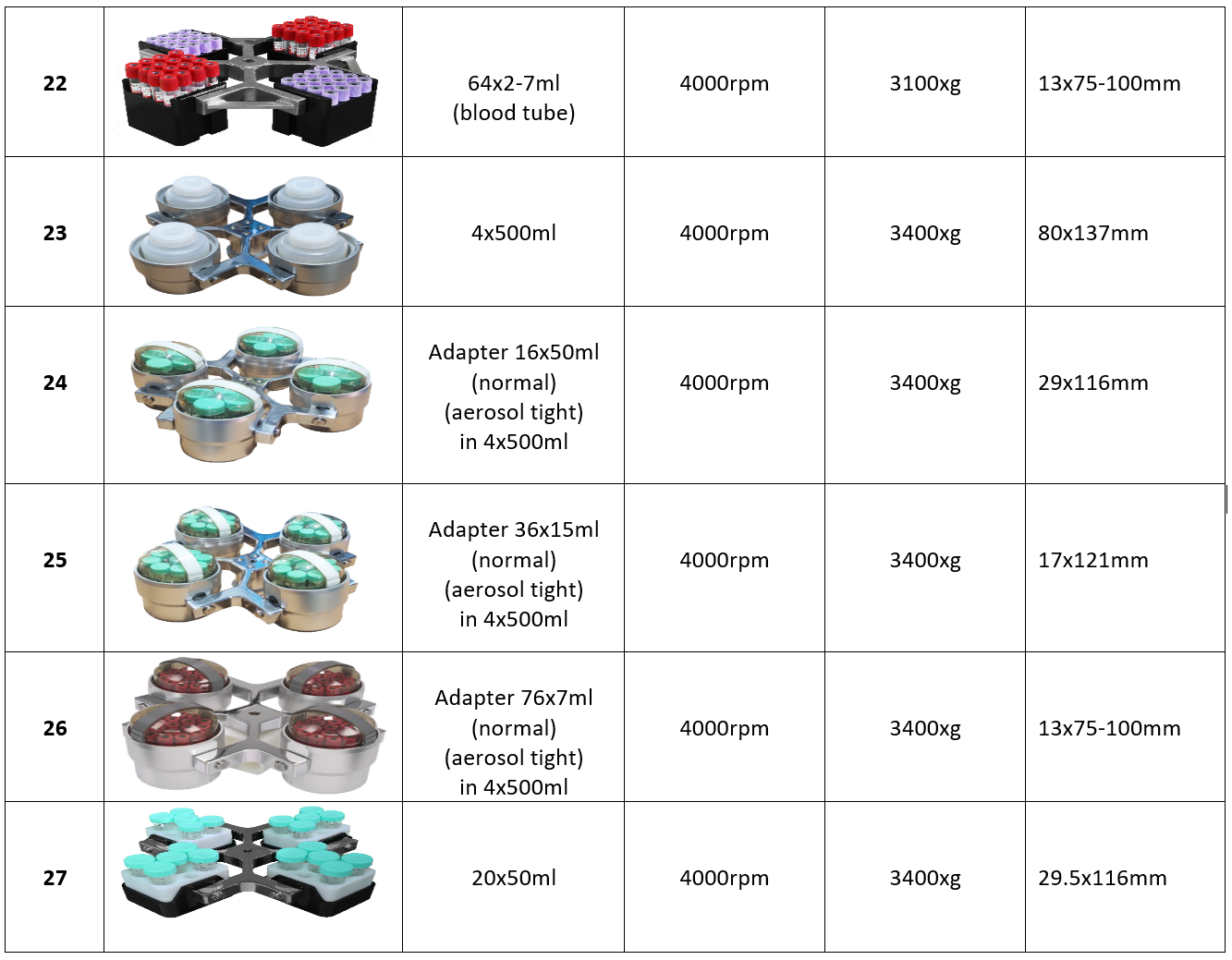

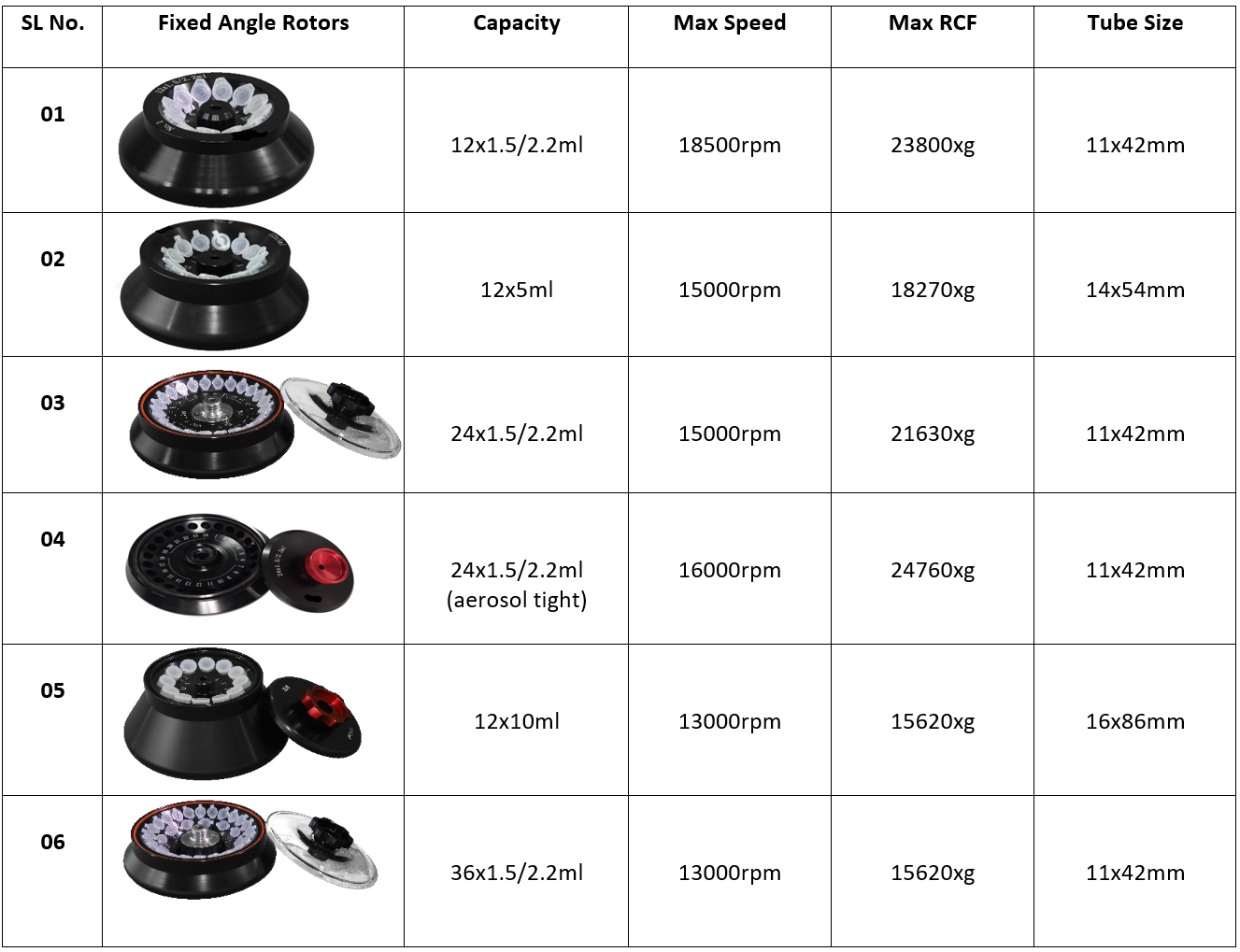

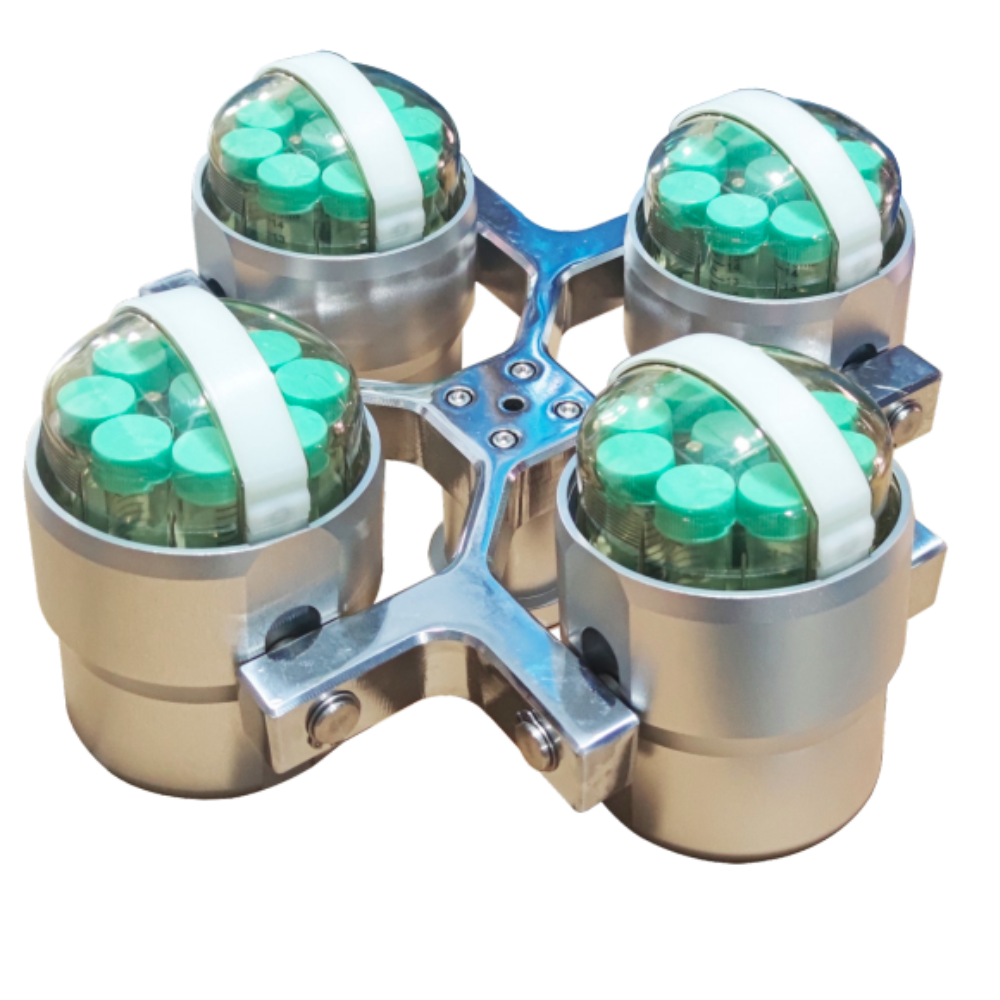

This benchtop centrifuge is designed for handling large sample volumes. It supports both swing-out and fixed-angle rotors. The swing-out rotors offer a maximum capacity of 4 × 500 ml bottles, 112 blood collection tubes, 4 × 2 × 96-well plates, or 40 × 15 ml conical tubes. The fixed-angle rotors are compatible with tubes ranging from 0.2 ml to 100 ml.
Up to 12 user-defined programs for convenient operation
19 levels of acceleration and deceleration control
Timer range: 1 minute to 9999 minutes 59 seconds
LCD display provides clear and intuitive parameter visibility
RCF can be set directly as needed
Automatic conversion between RPM and RCF
Parameters can be adjusted even while the rotor is running
Clear and intuitive display of all operational parameters
Touchscreen interface for easy parameter setting
RCF can be entered directly
Automatic conversion between RPM and RCF
Parameters can be adjusted while wearing gloves
Ability to reset parameters even while the rotor is spinning
Automatic rotor recognition to prevent overspeed

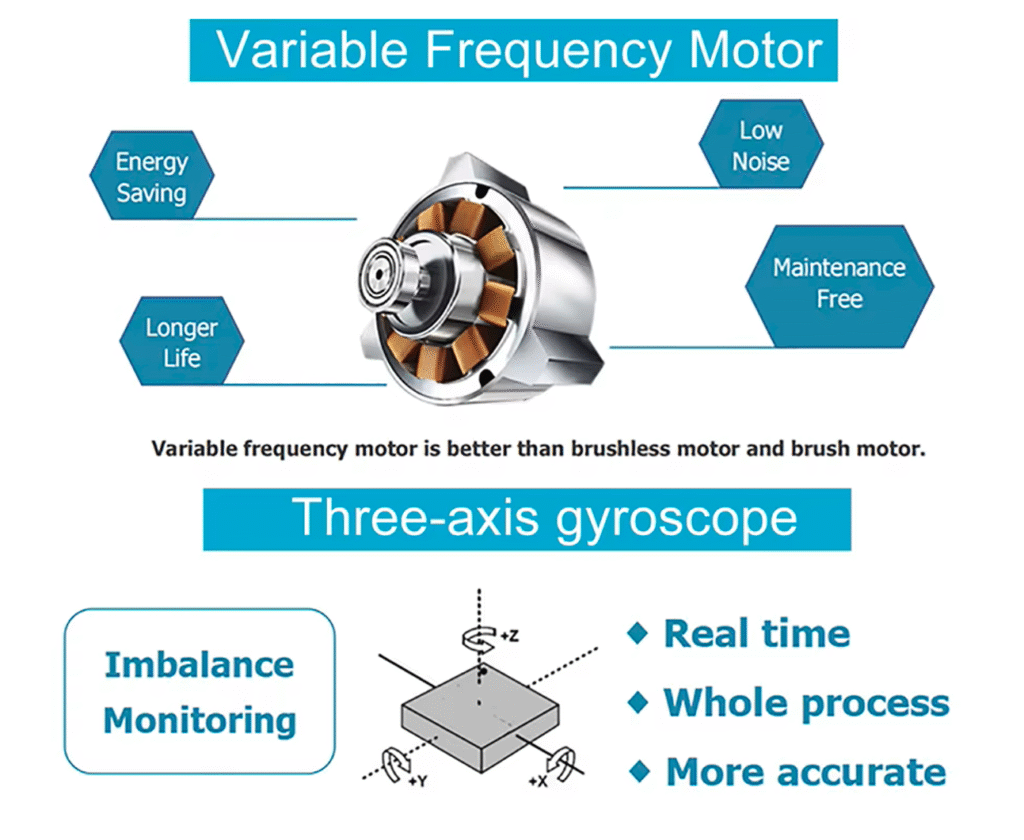

Imbalance detection through a three-axis gyroscope with automatic centrifuge stop and error display

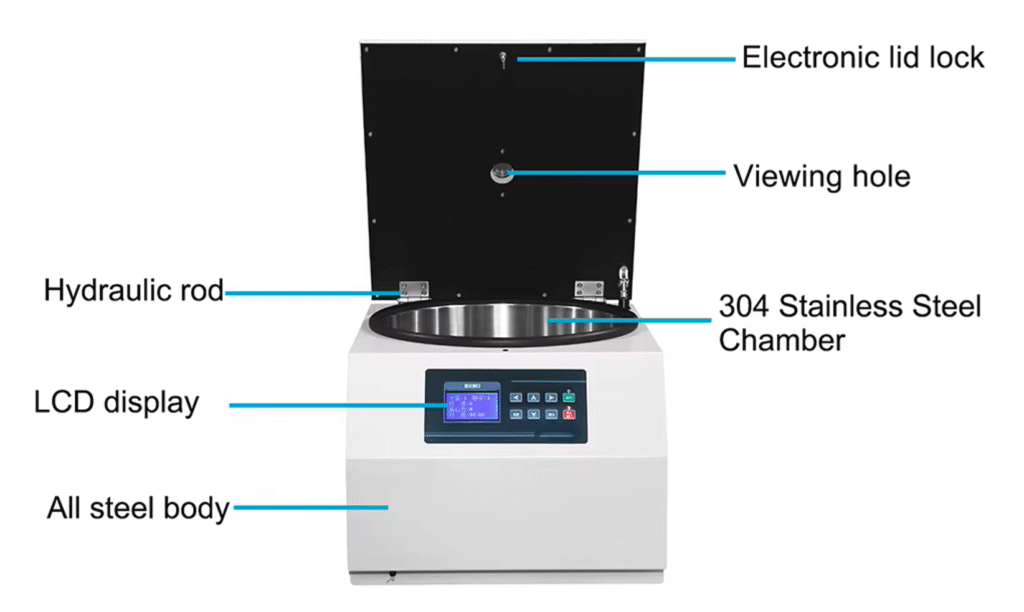

Motorized electronic door lock for enhanced safety
Safety interlock system prevents door opening while the rotor is in motion
Gas spring hinges to prevent accidental door drop
Calibration and operation check port integrated into the door
Emergency door release available for manual unlocking when needed
Motor: Variable frequency motor ensures stable operation, maintenance-free performance, and long service life
Housing: Constructed with thick, durable steel for strength and stability

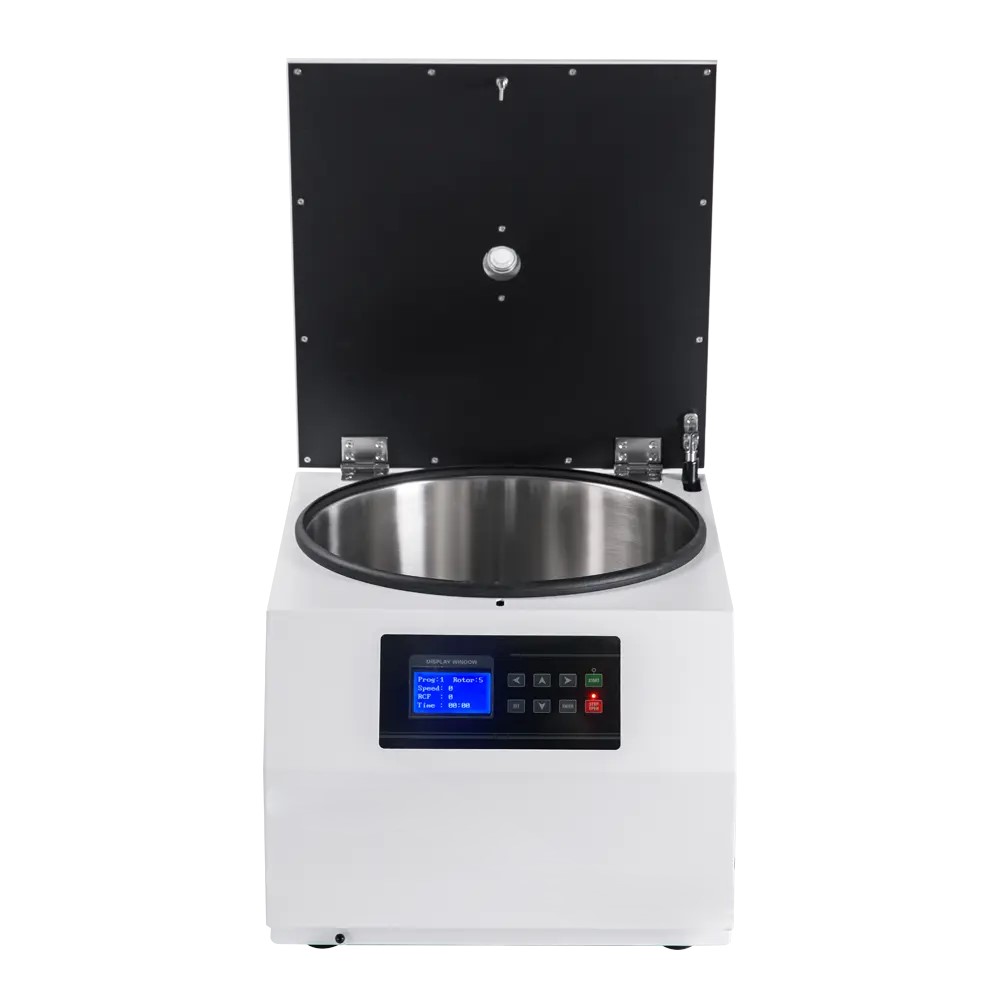

Chamber: Made of food-grade 304 stainless steel, corrosion-resistant and easy to clean
Rotor: High-quality steel or stainless steel swing-out rotors
Rotors are fully autoclavable for safe and convenient sterilization
Model | SMI-154BTLC-18.5K |
Max Speed | 18500rpm |
Max RCF | 24760xg |
Max Capacity | 4x500ml |
Speed Accuracy | ±10rpm |
Time Setting | 1m to 9999m59s |
Noise | ≤60dB(A) |
Power Consumption | 750w |
Dimension | 550 x 450 x 390 mm |
Weight | 49 kg |
