Home ≫Centrifuges> Bench Top High Speed Centrifuge>Bench Top High Speed Centrifuges SMI-154V-20K
CLICK TO SCAN

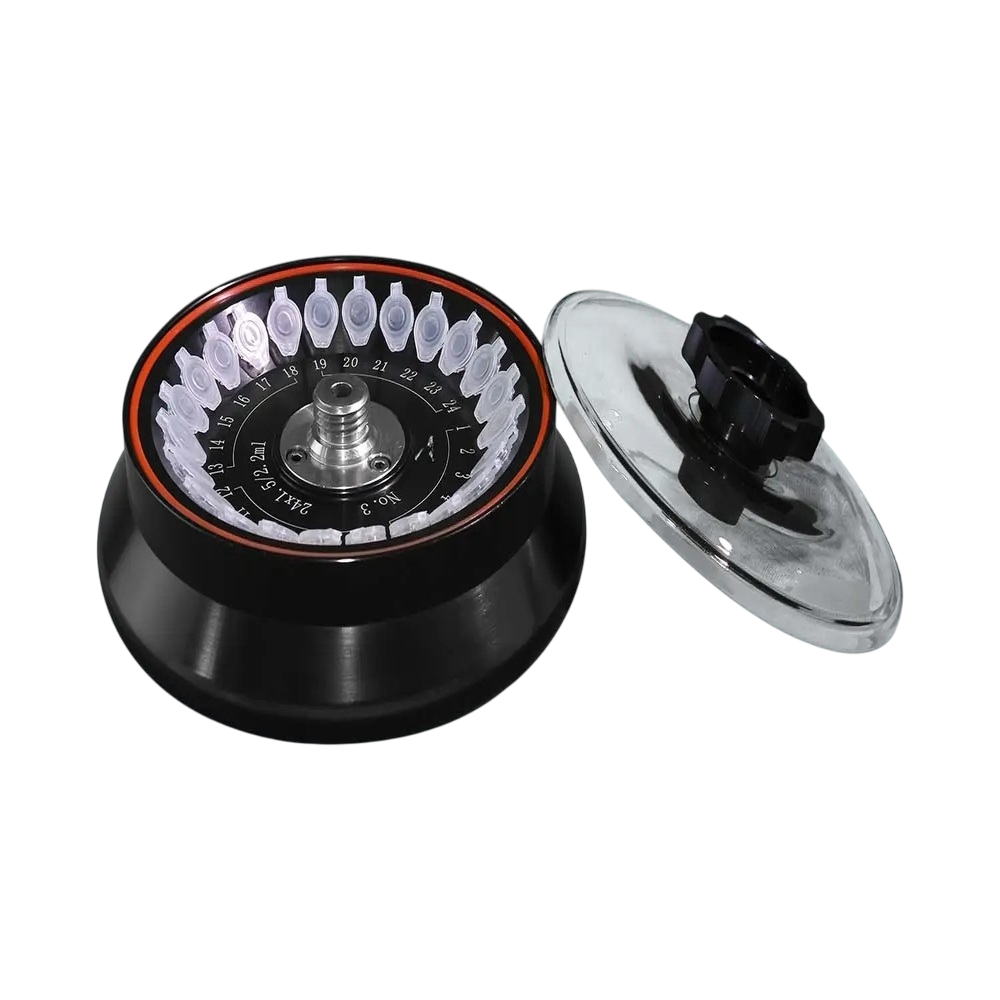

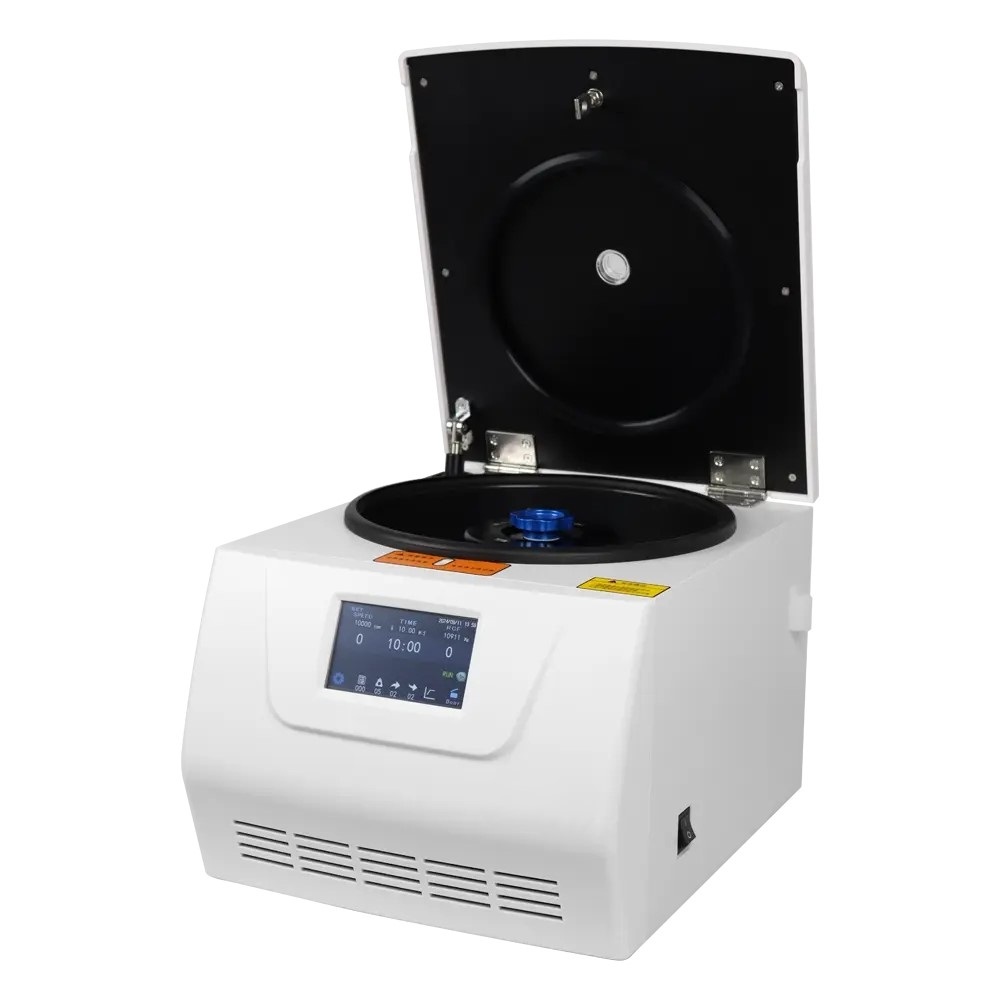

The Jindal advanced benchtop centrifuge accommodates up to 6 × 100 mL, 48 × 1.5/2.2 mL, or 8 × 50 mL conical tubes, offering versatile capacity for a wide range of laboratory applications. Equipped with an intelligent LCD touch screen for intuitive operation and precise control. For 24 × 1.5/2.2 mL tubes, an aerosol-tight rotor is available as an optional accessory to ensure maximum safety during high-speed runs.
Supports up to 1,000 customizable programs
Stores up to 1,000 run histories, easily exportable via USB
Offers 40 acceleration and deceleration profiles
Provides 5-step multi-stage centrifugation modes for complex protocols
Features a programmable timer up to 99 hours, 59 minutes, and 59 seconds, adjustable in 1-second increments
Clear and intuitive display of all operational parameters
Touchscreen interface for easy parameter setting
RCF can be entered directly
Automatic conversion between RPM and RCF
Parameters can be adjusted while wearing gloves
Ability to reset parameters even while the rotor is spinning
Automatic rotor recognition to prevent overspeed
Imbalance detection via three-axis gyroscope
Motorized electronic door lock
Door remains locked while rotor is spinning
Gas-assisted hinge to prevent accidental door drop
Access port in the door for calibration and operational checks
Emergency door release mechanism
Secure device access via user authentication
Motor: Variable frequency motor – ensures stable operation, maintenance-free performance, and extended lifespan
Housing: Robust steel construction for durability and strength
Chamber: 304 stainless steel with Teflon coating – corrosion-resistant and easy to clean
Rotor: Aluminum alloy fixed-angle rotor; Steel swing-out rotor
Rotors are autoclavable → Rotors are sterilizable via autoclaving
Model | SMI-154V-20K |
Max Speed | 20000rpm |
Max RCF | 27994xg |
Max Capacity | 6x100ml |
Speed Accuracy | ±10rpm |
Time Setting | 1s to 99h59m59s |
Noise | ≤60dB(A) |
Power Consumption | 500w |
Dimension | 440 x 360 x 315 mm |
Weight | 29 kg |
Product Brochure Link here
