Bench Top High Speed Centrifuge SMI-154BHSC-16 to 20K

Home Centrifuges> Bench Top High Speed Centrifuge>Bench Top High Speed Centrifuge SMI-154BHSC-16 to 20K

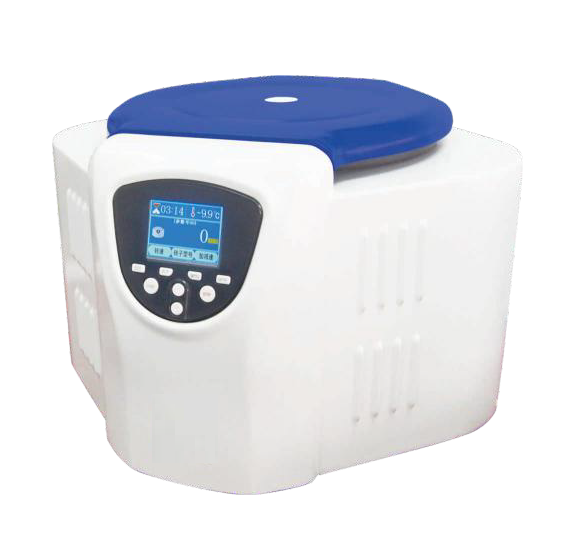

Bench Top High Speed Centrifuge SMI-154BHSC-16 to 20K

CLICK TO SCAN

Description

These large-capacity centrifuges (50 mL) can operate at high speeds of up to ≥16,500 rpm. Equipped with 13 types of rotors and a wide range of adapters, they offer versatile solutions to meet diverse laboratory needs. Notably, the 6×50 mL fixed-angle rotor is widely used across multiple applications.

Detailed Images

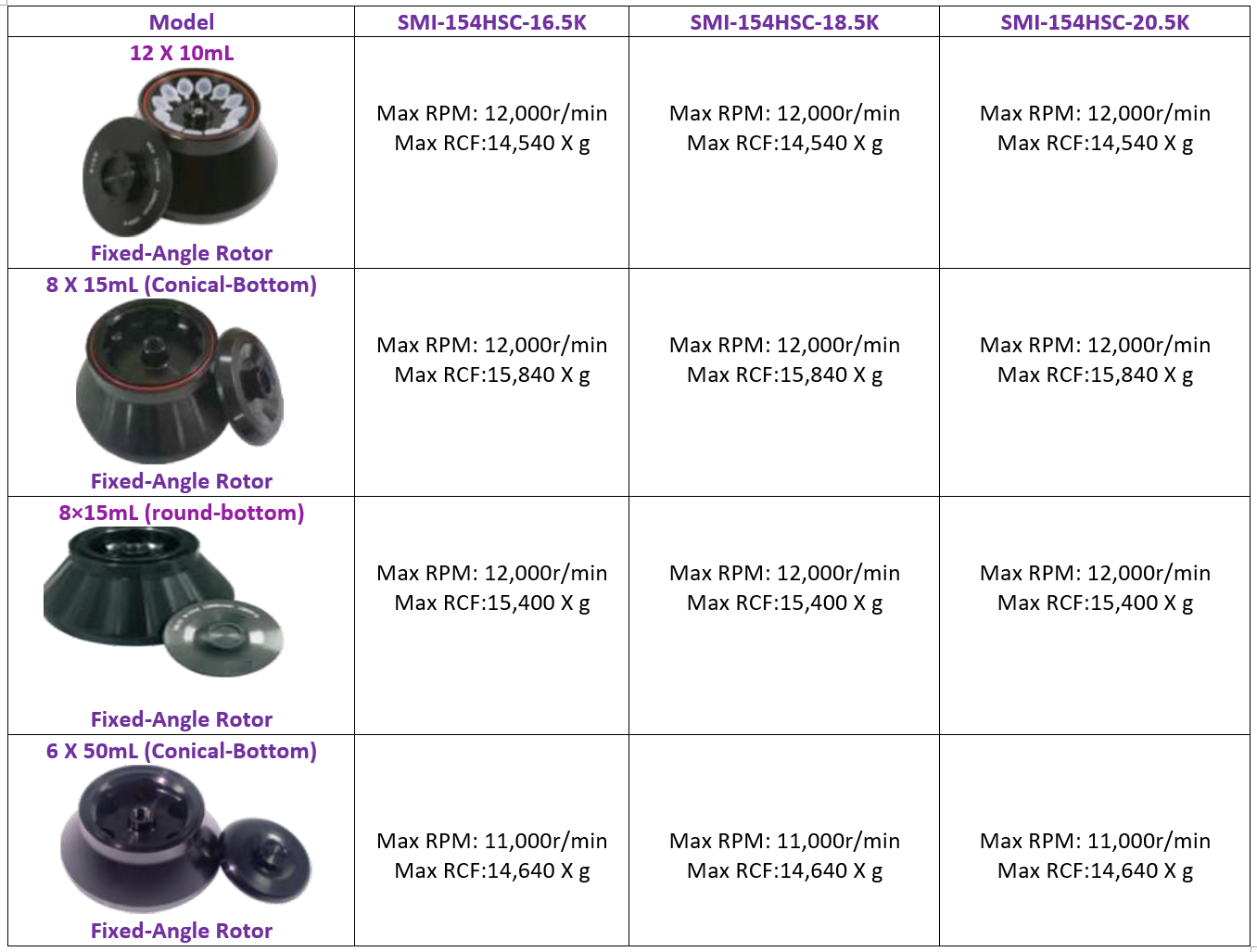

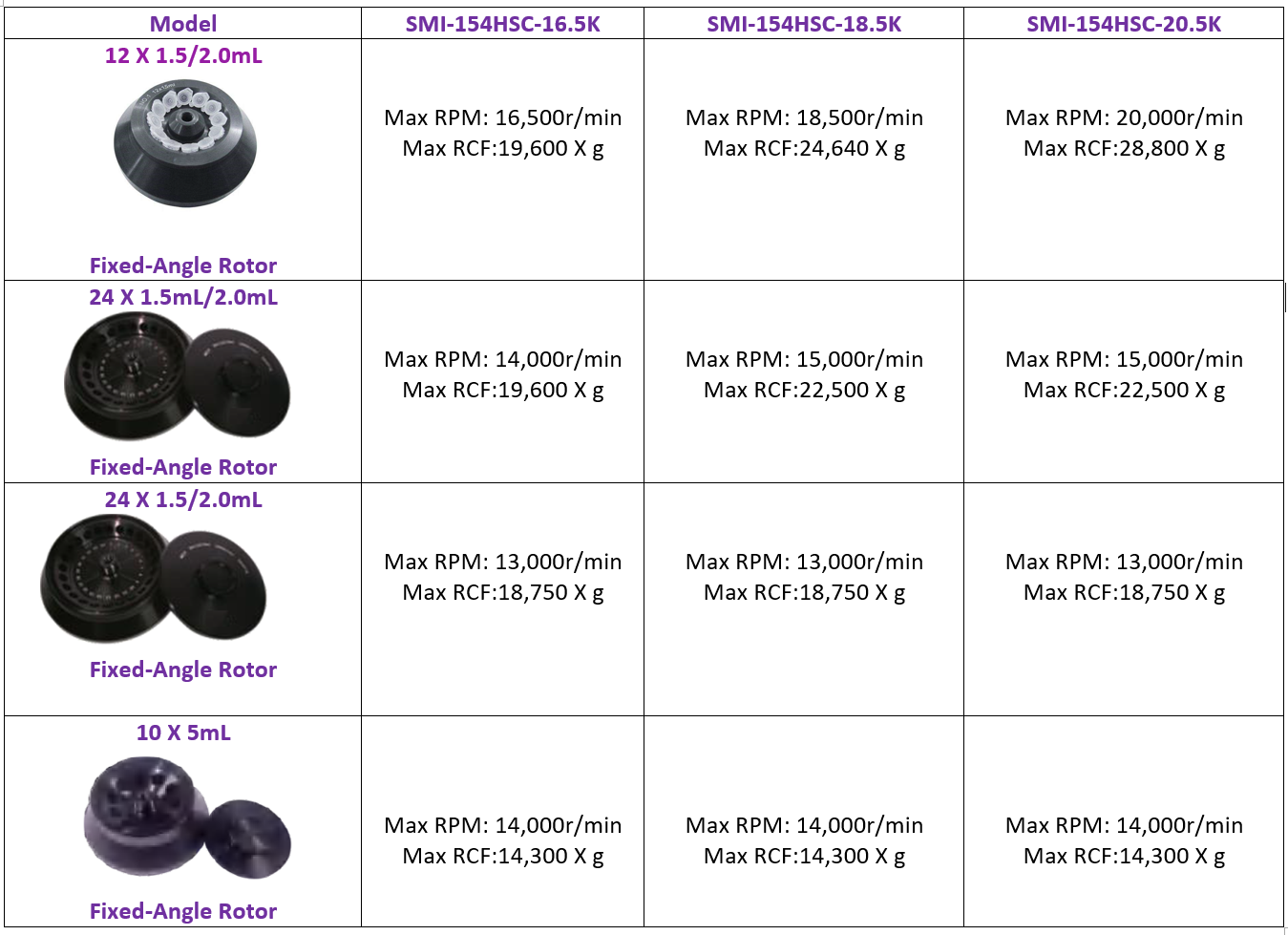

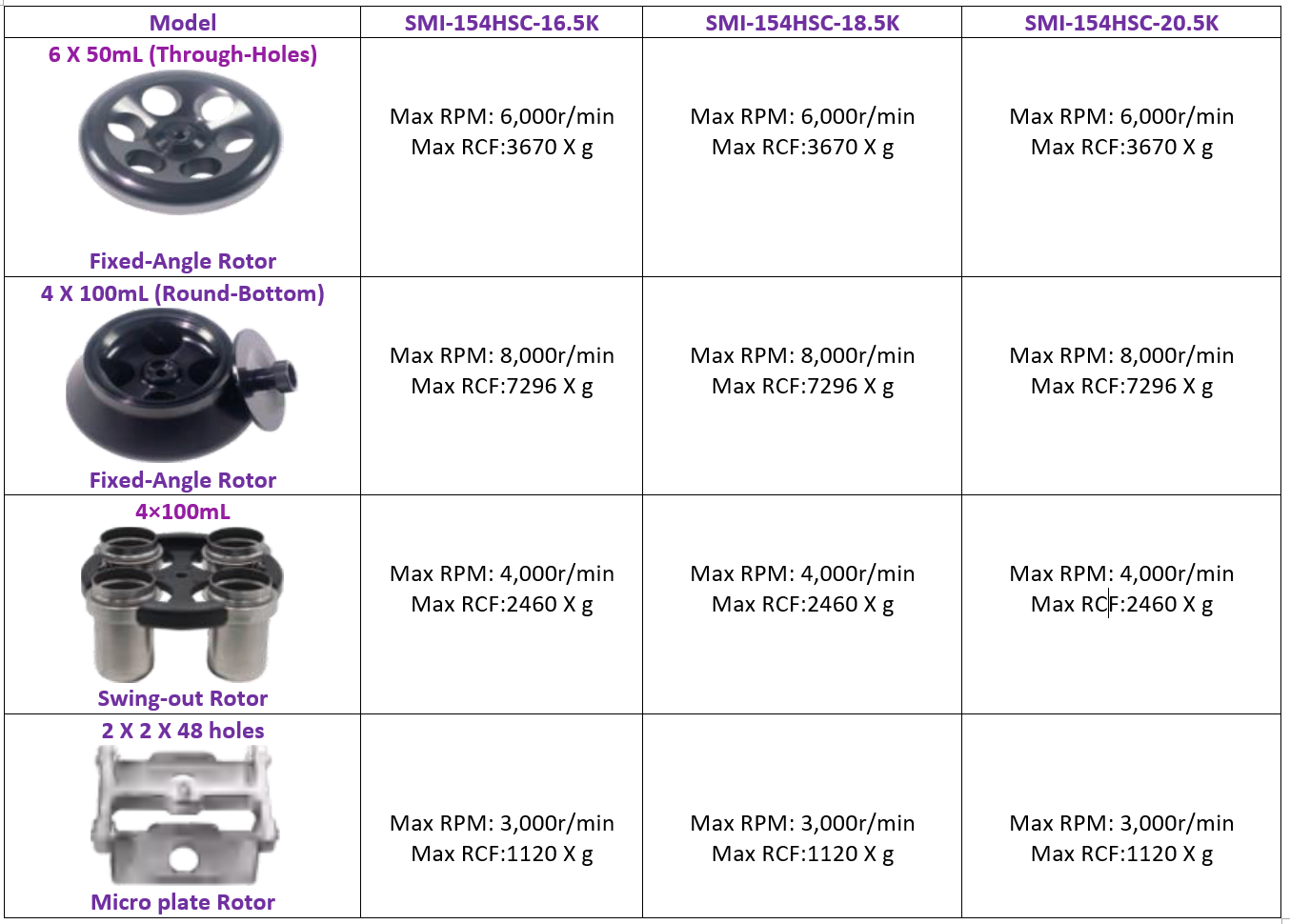

Rotor Specification

Features

  • Advanced Control System: Single-chip microcomputers, self-developed control boards, and high-torque DC brushless motors ensure stable, low-noise operation for a comfortable lab environment.

  • Safety & Protection: Early warning functions for overspeed, overheating, imbalance, undervoltage, and overvoltage. Three-stage damping shock absorbers prevent sample resuspension and ensure smooth, safe motor operation.

  • Intuitive Display: TFT-LCD true-color screen with touchscreen and physical keys. Special keys display centrifugal force, set parameters, and real-time operating parameters. Parameter adjustment is possible during operation.

  • Biosafety Rotor: Airtight fixed-angle rotor with integral silicone rubber sealing ring (EU RoHS 2015/863) prevents aerosol leakage and ensures operator and lab safety.

  • Durable Construction: Rear Grade 304 austenitic stainless-steel chamber with all-steel, plastic-sprayed housing, stamped front cover, and triple-layer protective cover ensures longevity and safety.

  • Silent Motorized Door Lock: Mechatronic system automatically locks the door securely when closed.

  • Flexible Programming: 10 levels of acceleration/deceleration; stores up to 20 user-defined programs; last-used programs recalled at startup.

  • Rotor Compatibility: Multi-specification forged aerospace aluminum rotors (fixed-angle only) with optional polyamide fiber adapters. Suitable for 0.2–100 mL tubes, reagent bottles, MTP microplates, PCR plates, and cell culture plates

Technical Data:

Model

SMI-154HSC-16.5K

SMI-154HSC-18.5K

SMI-154HSC-20.5K

Max. RPM

16500r/min

18500r/min

20500r/min

Max. RCF

19,600xg

24,640xg

28,800xg

Max. Capacity

4x100mL

Speed Accuracy

±30r/min (customizable, multiples of 10)

Control & Drive System

High torque AC/DC brushless motor, microcomputer control

Timer Range

1min-99h59min59s, with continuous centrifugation and instantaneous centrifugation

Total Power

500W

Power Supply

AC220V50Hz

Noise

≤60dB(A)

Weight

43kg

Dimension (L X W X H)mm

500 X 470 X 330
