Blood Bank Refrigerator SMI-164

Home ≫Blood Bank>Blood Bag Tube Sealer & Stripper>Blood Bank Refrigerator SMI-164

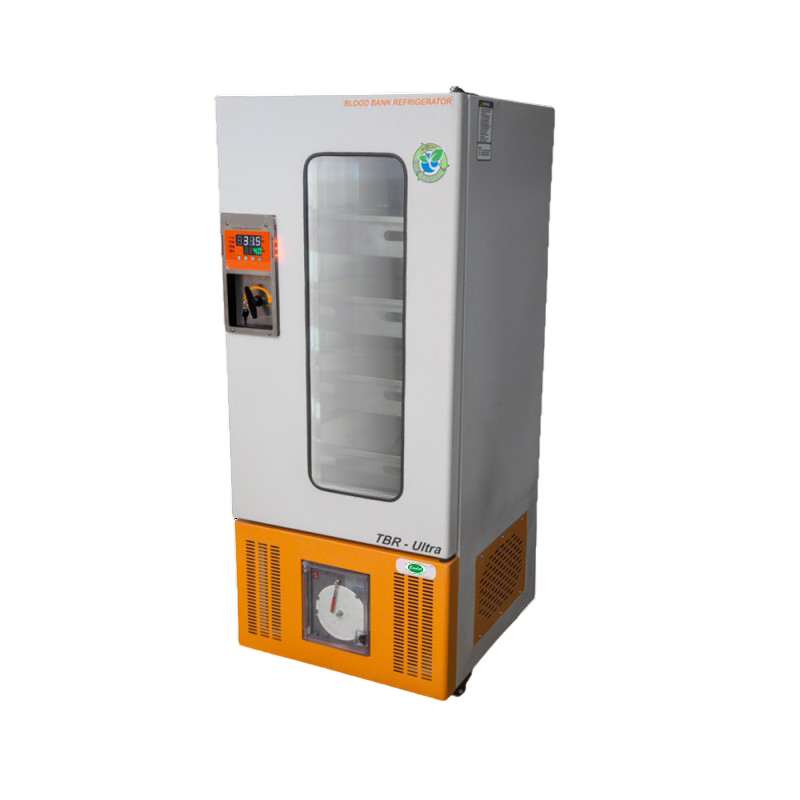

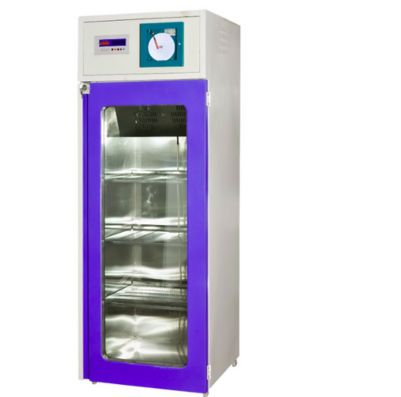

Blood Bank Refrigerator SMI-164



Jindal Blood Bank Refrigerators are the most versatile units for Blood Bank, specially designed for this purpose. Various capacities are available for storing the blood bags or bottles of capacity up to 450 ml at an automatically controlled temperature of 4°C to 6°C. Forced air circulation ensures a uniform temperature. These refrigerators are designed for the precise requirements of blood banking and processing applications. These Blood Bank refrigerators meet the stringent standards required in Blood Bank applications. For consistent, reliable protection, storage, and preservation of valuable blood products at a safe 4°C, you can depend on our blood bank refrigerators.

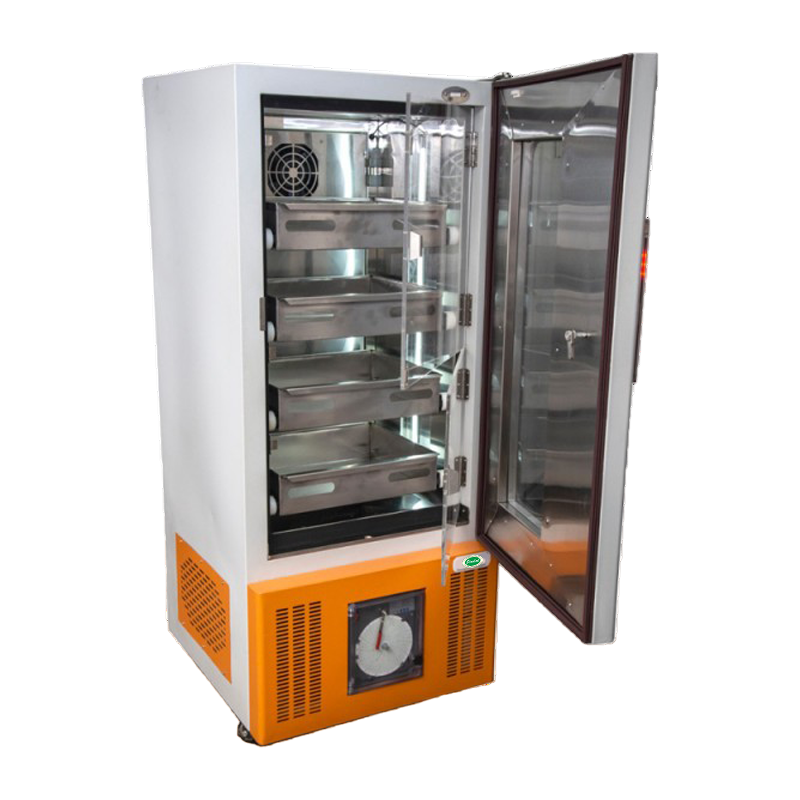

The  external body of the blood storage refrigerator is made of mild steel sheet, duly powder coated for a long-lasting finish. Caster wheels provided easy mobility. The inner chamber is made of high-quality stainless steel, and highly polished S.S. trays are provided for accommodating blood bottles or blood bags. The door is hinged and easy to open. The door has a glass window for viewing inside the chamber without disturbing the thermal conditions. The door is duly insulated for proper sealing from the external environment and is lockable.

The stainless steel chamber is insulated with the help of high-density CFC-free PUF (polyurethane) insulation to prevent temperature loss.

Cooling System:

 Cooling is achieved by a highly efficient refrigeration system using a hermetically sealed standard compressor and an air-cooled condenser. Our efficient design includes the hot line at the mouth of the refrigerator, which prevents the loss of temperature and also helps in maintaining peak efficiency even in high ambient conditions. Our refrigerators use commercially available CFC-free and HCFC-free eco-friendly refrigerants.

Benefits Summary:-

  • Stable Temperature Control
  • The unit is fitted with a microprocessor based digital temperature controller cum indicator for easy readability. The electronic management system allows setting the temperature as required as per the standard temperature range of the Blood Bank Refrigerator.
  • Microprocessor control ensures the most accurate temperature control available.
  • Multi fan air-flow systems ensure excellent temperature uniformity.
  • In-built automated defrost under precise microprocessor control.

Temperature Control: –

The Temperature is maintained inside the chamber with the help of a digital microprocessor based temperature controller cum indicator. Jindals has to its credit of providing high quality blood bank equipment where temperature is constantly maintained at 4°C, ± 1°C, with better uniformity and accuracy. An inbuilt audiovisual alarm system is provided with battery backup in case of power failure or temperature variation beyond permitted tolerance or door opening to prevent the spoilage of stored blood bags. The chamber illumination with a switch for visibility of bags kept inside the chamber is also provided.

Exclusive Standards:-

  • Customized styles & Design
  • Low maintenance & low running cost
  • Accurate temperature control and holdover capability
  • Uniformity of refrigerated blood & Safe blood storage
  • High efficiency superior refrigeration system

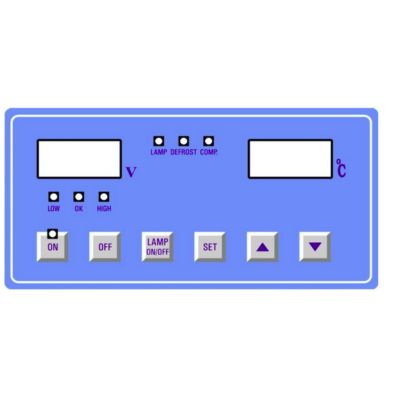

Control Panel: –

 All controls such as digital temperature controller-cum indicator, mains switches, indicating lights, Audio visual alarm, are easily accessible.

A fully automatic dedicated microprocessor helps in monitoring all the functions of the blood bank refrigerator.

The advanced microprocessor monitors the chamber temperature in real time to prevent the spoilage of blood and to maintain the set temperature value. The temperature is selectable between 2°C and 8°C, with a resolution of 0.1°C. The front soft-touch keypads permit control settings and access to default settings. An inbuilt feature for setting the compressor rest time is also provided. The microprocessor also monitors the incoming voltage. If the incoming voltage lies in a particular range, the LED will show OK, and the refrigeration unit will function. If the incoming voltage is either low or high, the LED will show low or high, and the refrigeration unit will be switched off for safety reasons. The bright LEDs display the set and read values of temperature. Both audio and visual alarms alert if there is any deviation in temperature, voltage, door open, power failure, battery low, etc.

Alarms Indication :

Line In




Compressor On


Heater On


Temperature High

Audio Visual

Temperature Low

Audio Visual

Door open

Audio Visual

System Ok


Battery Low


Battery On


Power Failure

Audio Visual

Sensor Failure

Audio Visual

Chart Change


Power supply: – The instrument is designed to operate on 220V Single Phase AC Supply (Model with 110V also available).

• 64 Blood bags
• 128 Blood bags
• 160 Blood bags
• 360 Blood bags

Optional Accessories:–
• Weekly temperature recorder
• Voltage stabilizer – 3 KVA / 4 KVA


At a Glance:-

  • Uniform temperature recovery
  • Forced Air circulation system
  • CFC & noise free compressor
  • Highly precise microprocessor control
  • PUF insulated triple pane glass door
  • Cabinet made of 18SWG galvanized steel duly powder coated
  • Inner chamber made of 22 SWG stainless steel SS304 grade
  • 80mm thick polyurethane insulation to ensure better hold over time
  • R134a Eco friendly refrigerant
