Blood Bag Centrifuge SMI-154BB

CLICK TO SCAN

Description

Jindal new-generation microprocessor-controlled blood bank centrifuges are ideally used for centrifugation of whole blood components like packed red cells, platelet-rich plasma, platelet concentrate, cryoprecipitate, buffy coat, etc.

The inner chamber is PUF-insulated, corrosion-free, and made of stainless steel to minimize vibration and noise levels. The smooth acceleration and deceleration help in clear separation, ensuring high-quality component yield.

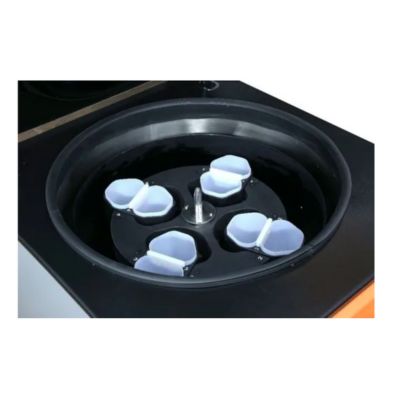

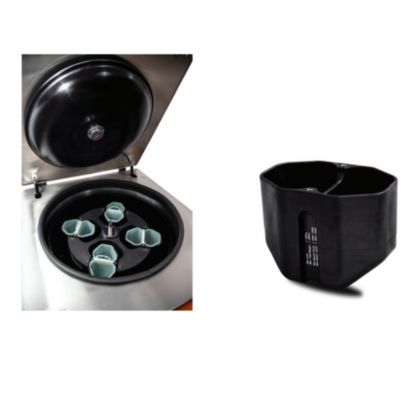

The user has the flexibility to choose from three rotor options. The rotors are designed to accommodate specific types of oval-shaped metal buckets and plastic carriers for holding six, eight, and twelve blood bags of different volumes and configurations, like 350/450 mL double, triple, quadruple, and inline-filter (quintuple) blood bags.

A user-friendly bright LCD microprocessor controller ensures easy operation. The unit can be run either by RPM (speed) or RCF (force), which eliminates the need for manual calculations. The user-interactive menu guides the operator for step-by-step operation.

The instrument is designed to operate on a 220V single-phase AC supply (a model with 110V is also available).

Salient Features:

  • Temp. range : -200C to +400C
  • 10 acceleration & 9 deceleration profiles
  • Speed accuracy :+/-10RPM
  • Low Noise level <54dB
  • Choice of 3 rotors to process 6, 8 & 12 blood bags in a cycle
  • Brushless induction motor with microprocessor based drive
  • Advanced microprocessor control with user friendly operation
  • Safety lid interlock to prevent cover opening during centrifugation
  • Unbalance cut off with indication
  • Over current overheating safety cut-off for motor protection
  • Rotor over speed protection
  • Alarms for imbalance, door open & over temperature
  • CFC Free refrigeration system
  • Tamper proof memory



Technical Data:

Parameter
Unit
SMI-154BB
Microprocessor Controller
Type
Fuzzy logic user friendly with bright LCD screen
Menu Driven Program
Nos.
99
Acceleration Profile
Steps
1-9
Deceleration Profile
Steps
1-9
Max. Speed
rpm
4500
Max. RCF
g
6000
Timer Range
min
0-99
Dimensions(WXDXH)
mm
850X950X975mm
